Vendor: M31 Technology Corp. Category: Multi-Protocol PHY

5G Combo Serdes for USB/PCIe, TSMC 12FFC, N/S orientation

The Serdes PHY IP provides high-performance, multi-lane capability and low power architecture for the high-bandwidth applications.

Contact Provider Request Datasheet
TSMC 12nm FFC View all specifications

Overview

The Serdes PHY IP provides high-performance, multi-lane capability and low power architecture for the high-bandwidth applications. The Serdes IP supports data rates from 1.25G to 10.3125Gbps including XFI, SFI, 10GBASE-KR, CEI, XAUI, USXGMII, QSGMII, and SGMII. With the supports for both TX and RX equalization techniques, the Serdes IP is designed to meet the requirements for different channel conditions.

Key features

  • Supports 1.25G to 10.3125Gbps data rates and compact die area
  • Supports up to 25dB channel loss@ 5.15625GHz
  • Supports RX loss-of-signal detection
  • Supports X1, X2 and X4 lanes
  • Accessible register controls allow user specific optimization of critical parameters (e.g., TXPLL bandwidth, TX de-emphasis level, CDR bandwidth, and EQ strength)
  • Supports both FOM for Link-EQ Training
  • Supports robust BIST functions for mass production testing
  • Support Wire-Bond and Flip-Chip packages

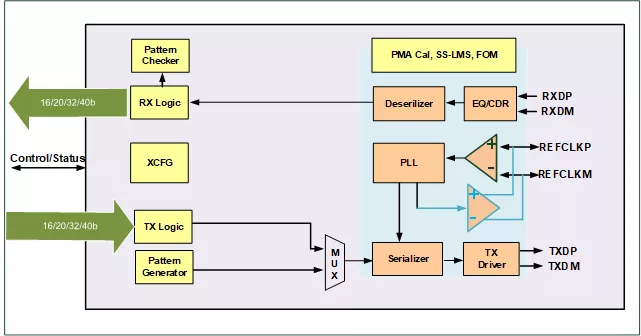

Block Diagram

5G Combo Serdes for USB/PCIe, TSMC 12FFC, N/S orientation block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 12nm FFC —

Specifications

Identity

Part Number
5G Combo Serdes for USB/PCIe, TSMC 12FFC, N/S orientation
Vendor
M31 Technology Corp.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact M31 Technology Corp.
