Vendor: NTLab Category: Temperature Sensor

-45 … +85°C Temperature sensor

180TSMC_TS_01 consists of built-in 10-bit R-2R DAC, diode and own reference voltage former.

TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

180TSMC_TS_01 consists of built-in 10-bit R-2R DAC, diode and own reference voltage former. When requested, controller performs conversion of diode voltage level, which depends on temperature linearly. After conversion is done it sets “ready” flag to “1” and outputs 10-bit code. Die temperature is calculated with the following expression: Temp = (code-407)*0.625. The conversion time is 640 us. With small size, usability and low current consumption, this device is ideal for use in controlling of the die temperature.

Key features

TSMC SiGe 0.18 um
Operating temperature range -45 …+85 ºC
Built-in 10-bit R-2R DAC
Wide voltage range 2.8 … 3.6 V
Low consumption 58 uA
Small area
No external components required
Portable to other technologies (upon request)

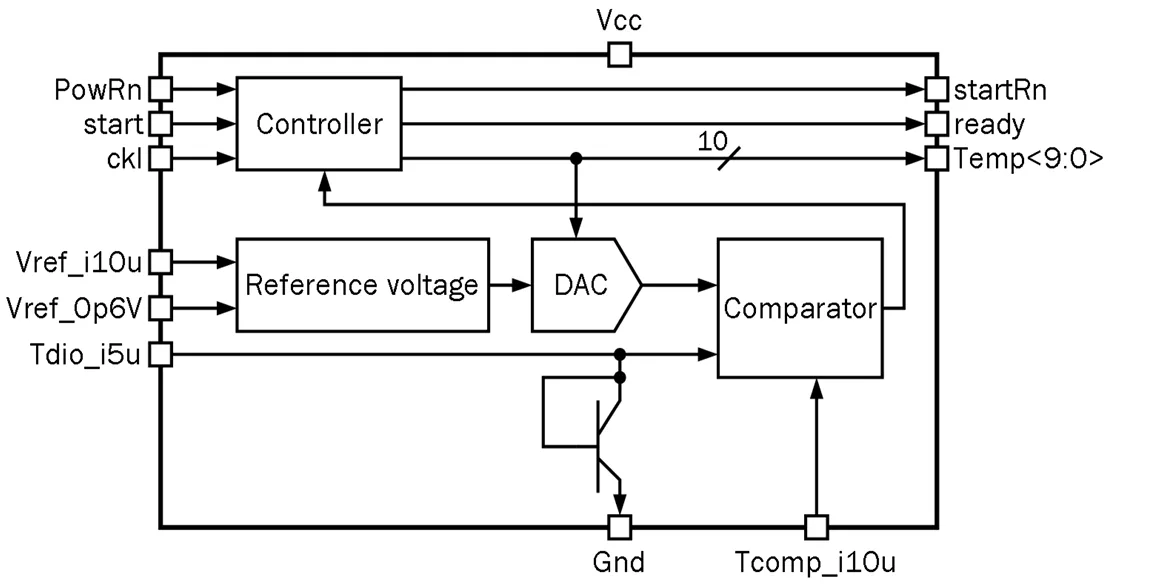

Block Diagram

180TSMC_TS_01 block diagram

Applications

On chip temperature measurement
Pseudostatic analog digitalization
Sensitive analog circuit
Navigation receivers
High clock digital VLSI

What’s Included?

Schematic or NetList
Abstract model (.lef and .lib files)
Layout view (optional)
Behavioral model (Verilog)
Extracted view (optional)
GDSII
DRC, LVS, antenna report
Test bench with saved configurations (optional)
Documentation

Silicon Options

Foundry	Node	Process	Maturity
TSMC	180nm	BCDG2	Silicon Proven

Specifications

Identity

Part Number

180TSMC_TS_01

Vendor

NTLab

Type

Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab

HQ: Lithuania
