Reference Generator - Low Power ISR- 330 nA (Typ) - TSMC0.13µm

This macro-cell is a low power voltage reference and a current generator with precise temperature coefficient.

TSMC 130nm BCD+ View all specifications

Overview

This macro-cell is a low power voltage reference and a current generator with precise temperature coefficient.

Trimming capability allows process variation compensation of the voltage reference level and current TC.

The CM1227hh has a voltage reference output at 1.2V ±5%, and three CTAT current outputs with TC of – 1.3moC–1, one source at 10nA and two sinks at 25nA and 50nA.

The IP provides a calibration word which serves to trim the current outputs TC and to calibrate the voltage output

Key features

  • 1.2V ± 5% (trimmed)
  • –1.3m°C–1 Current TC
  • Low current consumption 330nA (typ)
  • Temperature Range: –40°C to 85°C
  • Voltage supply range 1.7V to 5.5V
  • Area: 0.057 mm2

Block Diagram

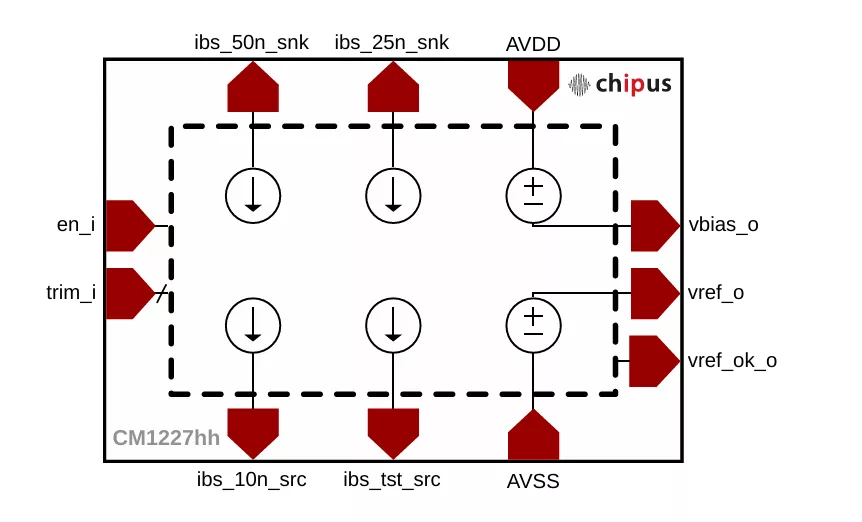

CM1227hh block diagram

Applications

  • Low Power applications
  • Battery powered ICs
  • IoT applications

What’s Included?

  • GDS
  • Behavioral model
  • Layout
  • Datasheet
  • Factsheet
  • Outline

Silicon Options

Foundry Node Process Maturity
TSMC 130nm BCD+ —

Specifications

Identity

Part Number
CM1227hh
Vendor
Chipus Microelectronics
Type
Silicon IP

Provider
