30 mA LDO voltage regulator (output voltage 0.9 to 1.3 V)

055GF_LDOVR_03 the voltage regulator is used to maintain a stable output voltage at varying input voltage.

GlobalFoundries 55nm Silicon Proven View all specifications

Overview

055GF_LDOVR_03 the voltage regulator is used to maintain a stable output voltage at varying input voltage. The block consists of a differential amplifier, pass transistor and resistor's divider. Differential amplifier compares reference voltage with voltage from a feedback divider and adjusts the impedance of a PMOS transistor for stabilization of output voltage at required level. The output voltage adjustment is defined by the trimming code trim. The block has low current consumption and allows high current load.

Key features

Global Foundries CMOS 55 nm
Low drop out
Low current consumption
Two modes operations: “Normal”, “Economy”
No discrete filtering capacitors required (cap-less solution)
Output voltage trimming
Small area

Block Diagram

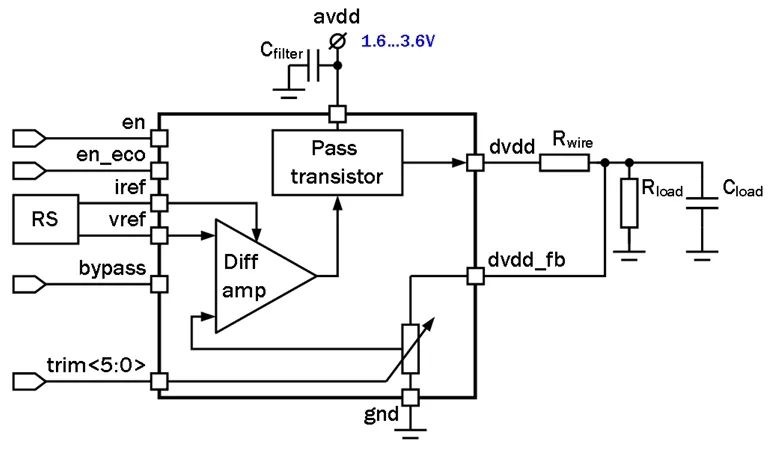

055GF_LDOVR_03 block diagram

Applications

Supply voltage sensitive circuits

What’s Included?

Schematic or NetList
Abstract model (.lef and .lib files)
Layout view (optional)
Behavioral model (Verilog)
Extracted view (optional)
GDSII
DRC, LVS, antenna report
Test bench with saved configurations (optional)
Documentation
