21 to 50 MHz 4rd order Low pass filter
The block is the 4rd order Butterworth low pass filter with cut-off frequency adjustment.
Overview
The block is the 4rd order Butterworth low pass filter with cut-off frequency adjustment. It is based on the two amplifiers with feedback and has differential input and output. There are two modes for cut-off frequency programming: manually and automatically. The generator is used to adjust filter cut-off (CO) frequency in automatic mode. Also CO frequency can be set manually.
Key features
- AMS BiCMOS 0.35 um
- Low noise figure
- High linearity
- Low pass filter cut-off frequency adjustment system
- Very low amplitude ripple
- Portable to other technologies (upon request)

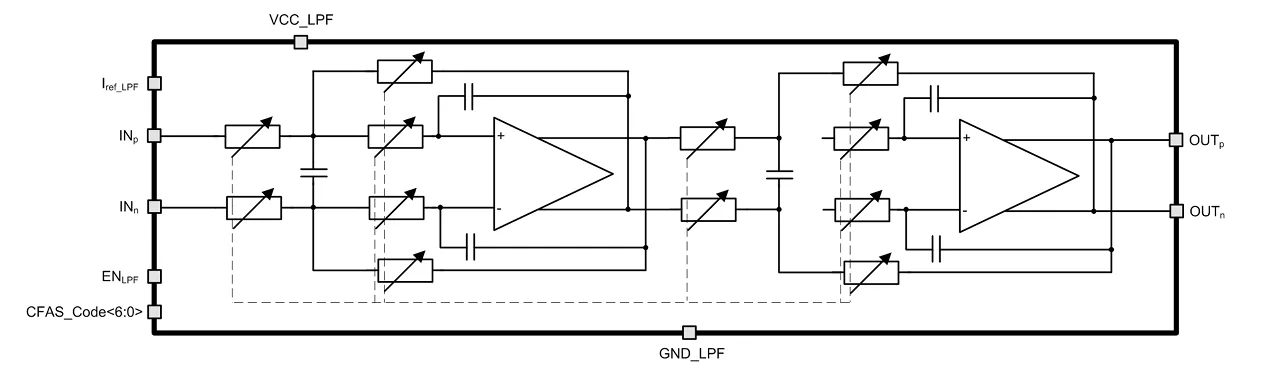

Block Diagram
350AMS_LPF_02 block diagram
Applications
- Receivers
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
350AMS_LPF_02
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
