What is 20G OTN Processor, Transponder?
20G OTN Processor, Transponder is a Optical Transport IP core from Tera-Pass listed on Semi IP Hub.
Vendor:
Tera-Pass
Category:
Optical Transport
20G OTN Processor, Transponder
The Apodis IPL4402A OTN processors ASICs are a Transponder member of Tera-Pass’ product family for access applications.
Overview
The Apodis IPL4402A OTN processors ASICs are a Transponder member of Tera-Pass’ product family for access applications. Apodis IPL4402A processors support the functionality required by Premium Services networks. Apodis IPL4402A’s client-side supports up to 2 multi-service ports and multiplexes them to 2 OTU2 (10.7/11.1 G) bearers.
Key features
- 2 Client Ports support up to 2 10GE signals presented through 2 multi-rate interfaces. The 10GE signals can be accepted through serial or parallel XAUI interfaces.
- 2 Client Signal Processors, each capable of supporting 10G of Client Traffic, implement the Ethernet functionality.
- A Transparent Agnostic Fabric (TAF) provides non-blocking, unidirectional, bi-directional and unrestricted multicast connectivity.
- 2 Line Signal Processors, each capable of supporting up to 10G of Line Traffic, implement the functionality of OTU2 bearers.The 2 OTU2 signals can be presented over serial or parallel SFI4.2 interfaces.
- A 32-bits parallel control bus supports Intel and Freescale operational modes.
- An External Overhead Interface (EOI) provides round-robin access to all the GCC channels of OTN signals, to all the DCC channels of SDH/SONET signals and Read/Write (R/W) to the entire overheads of OTN signals. Special built-in logical operators allow to implement additional functions on OTN overhead fields.
- Apodis OTN processors operate off a single 155.52MHz reference clock. No additional external circuitry is needed to support the wide variety of protocols and bitrates of its Client and Line interfaces. Integrated jitter attenuators with variable filter poles meet the most stringent requirements for Jitter Generation, Accepted Jitter and Transfer Jitter.

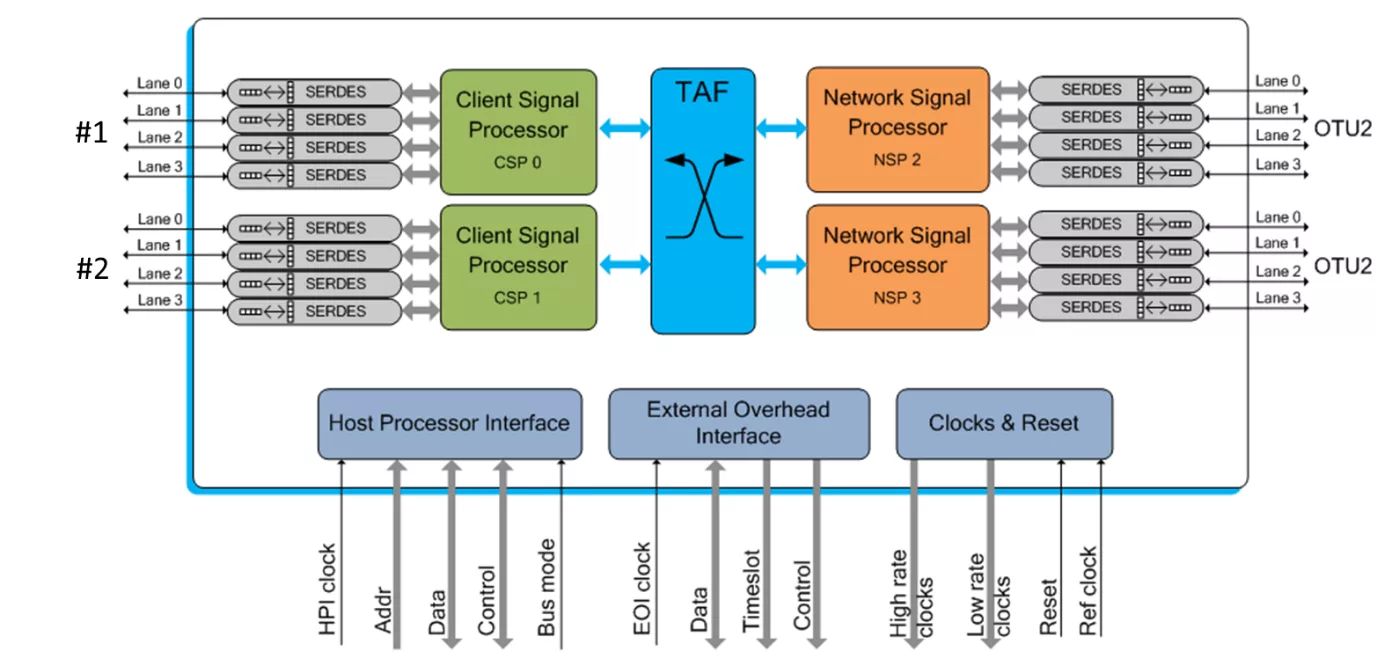

Block Diagram
Apodis IPL4402A block diagram
Specifications
Identity
Part Number
Apodis IPL4402A
Vendor
Tera-Pass
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Israel
