2 mA LDO voltage regulator (output voltage 1.2 V)

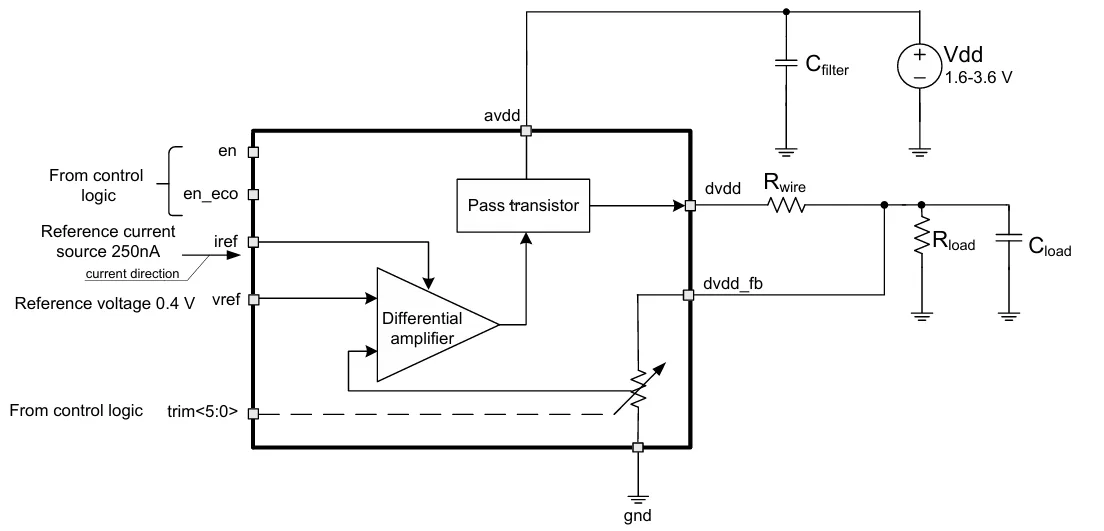

The voltage regulator consists of a differential amplifier, pass transistor and resistor's divider. Differential amplifier compares reference voltage with voltage from a feedback divider and adjusts the impedance of a PMOS transistor for stabilization of output voltage at a set level. The output voltage adjustment is defined by the trimming code trim<5:0>. The block has low supply current and allows high current load.
The LDO can operate in two modes: “Normal” and “Economy”. “Economy” mode is introduced to save battery power. Although the mode may handle full current load, it has slower reactions on load current change. “Normal” mode is a default LDO mode with minimum response time on load change.
The block is designed on Global Foundries CMOS 55 nm technology.

• Global Foundries CMOS 55 nm
• Low drop out
• Low current consumption
• Two modes operations: “Normal”, “Economy”
• No discrete filtering capacitors required (cap-less solution)
• Output voltage trimming
• Small area

• Supply voltage sensitive circuits

• Schematic or NetList
• Abstract model (.lef and .lib files)
• Layout view (optional)
• Behavioral model (Verilog)
• Extracted view (optional)
• GDSII
• DRC, LVS, antenna report
• Test bench with saved configurations (optional)
• Documentation
