2.0-3.6V to 1.0-1.4V step down DC/DC converter

055UMC_DCDC_01 is high-efficiency step-down DC-DC switching buck converter targeted for operation from 2.0V to 3.6V input voltage.

Contact Provider Request Datasheet
UMC 55nm Silicon Proven View all specifications

Overview

055UMC_DCDC_01 is high-efficiency step-down DC-DC switching buck converter targeted for operation from 2.0V to 3.6V input voltage. It is able to supply circuits with 1.2V and up to 50 mA average output current. The DC-DC converter contains adjustment of output current limit, overload protection, and under voltage-lockout circuit. During startup time DC-DC converter works in the soft start mode, which provides the gradual increase of the output voltage.

Key features

  • UMC 55nm eFlash CMOS technology
  • Input Voltage Range: +2.0V to +3.6V
  • Current limit detector
  • Soft Start
  • Undervoltage-lockout circuit
  • Overload protection

Block Diagram

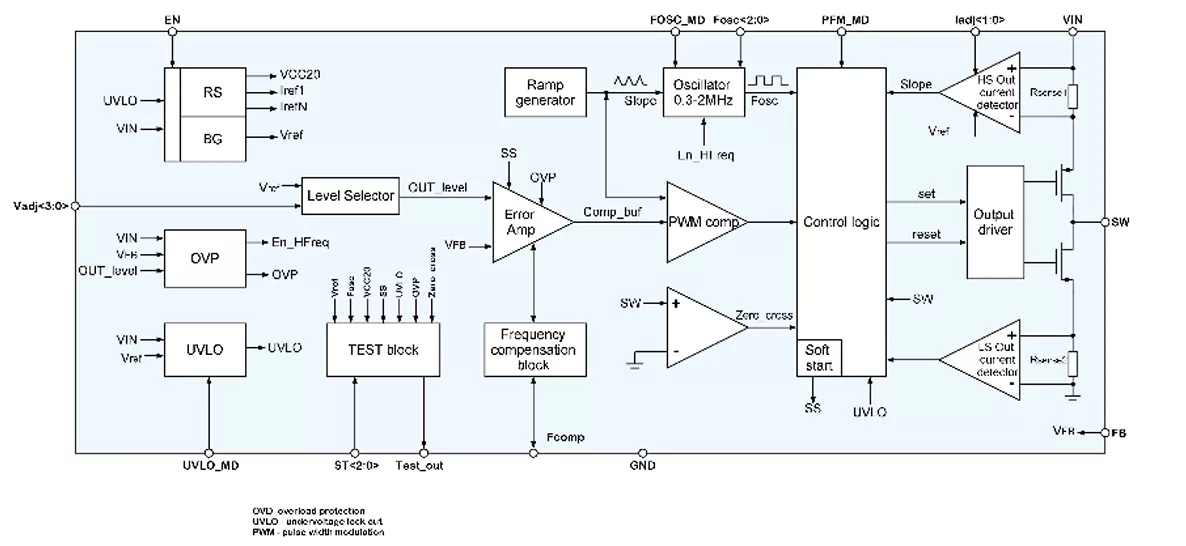

055UMC_DCDC_01 block diagram

Applications

  • Low-Voltage, High-Density Systems
  • Broadband, Networking, and Optical Communications Infrastructure

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
UMC 55nm 55nm 550 nm Silicon Proven

Specifications

Identity

Part Number
055UMC_DCDC_01
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
