16-bit -90dB THD+N Multi-Channel Audio Sample Rate Converter
The ASRC-lite (CWda50) is part of Coreworks family of multi-channel asynchronous Audio Sample Rate Converter (ASRC).
Overview
The ASRC-lite (CWda50) is part of Coreworks family of multi-channel asynchronous Audio Sample Rate Converter (ASRC). This core can be used to interface digital audio equipments operating at different sample rates. It has been designed for systems that require a low-cost solution, maintaining low harmonic distortion and noise, and a high tolerance and rejection of input jitter.
The ASRC-lite can perform common sample rate conversions with less than -90 dB of Total Harmonic Distortion plus Noise (THD+N) and has a Dynamic range of 92 dB, supporting input data of 16-bit resolution.
The Coreworks ASRC series are implemented to support several key industry interfaces: TDM parallel, TDM serial, Parallel, I2S, SPDIF-AES3.
Coreworks offers a broad range of asynchronous sample rate converters targeted for variety of audio applications.
Key features
Specifications
- Fully digital audio asynchronous sample rate conversion
- Multi-channel audio, configurable up to 8 channels
- Automatically adjusts to input and output rate changes
- Input and output sample rate range: 8 kHz to 192 kHz
- Sampling rate conversion ratios from 1:12 to 7:1
- Supports multi-channel TDM serial/parallel audio, I2S, SPDIF, parallel handshaked
- High input jitter tolerance (small data bursts or misses) and rejection capability
- Latency: 128/FSIN + 2/FSOUT
- Lower than -90 dB THD+N for common conversion rates; greater than 92 dB Dynamic Range
- Real time reporting of sample rate conversion ratio
- Extremely fast synchronization time (128 input sample periods)
- Pre-synthesis ClkOUT configuration from 64xFSOUT to 1024xFSOUT
Interfaces
- Parallel
- Parallel TDM
- I2S
- Serial TDM
- SPDIF-AES3

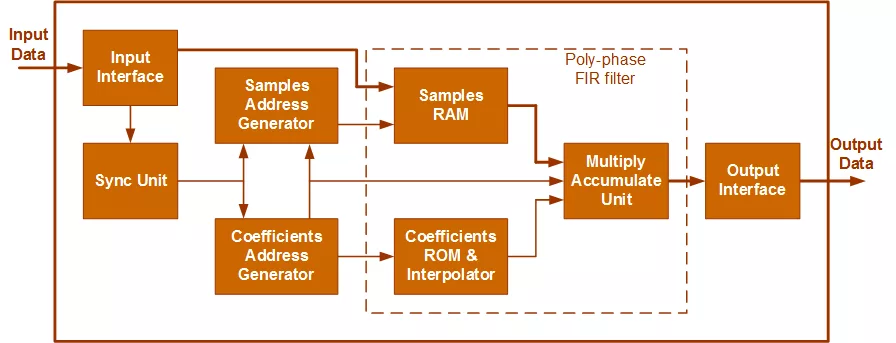

Block Diagram
CWda50 block diagram
Specifications
Identity
Part Number
CWda50
Vendor
Coreworks, S.A.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Portugal
