CT22403 is a 14-bit 10 Ms/s Analog to Digital converter.
Overview
CT22403 is a 14-bit 10 Ms/s Analog to Digital converter.
It is implemented with SAR architecture and offline calibration.
With 15mA total current consumption the Figure of merit of the ADC is 300 fJ/step, that is at the state of the art for its frequency sampling range.
The calibration time at maximum clockfrequency is less than 20 us.
Key features
- Single Ended Input
- Max sample rate: 10 Msps
- INL = ±2 LSB
- DNL = ±1 LSB (no missing codes)
- Internal Buffers for Reference Voltages
- 15mA supply current
Block Diagram

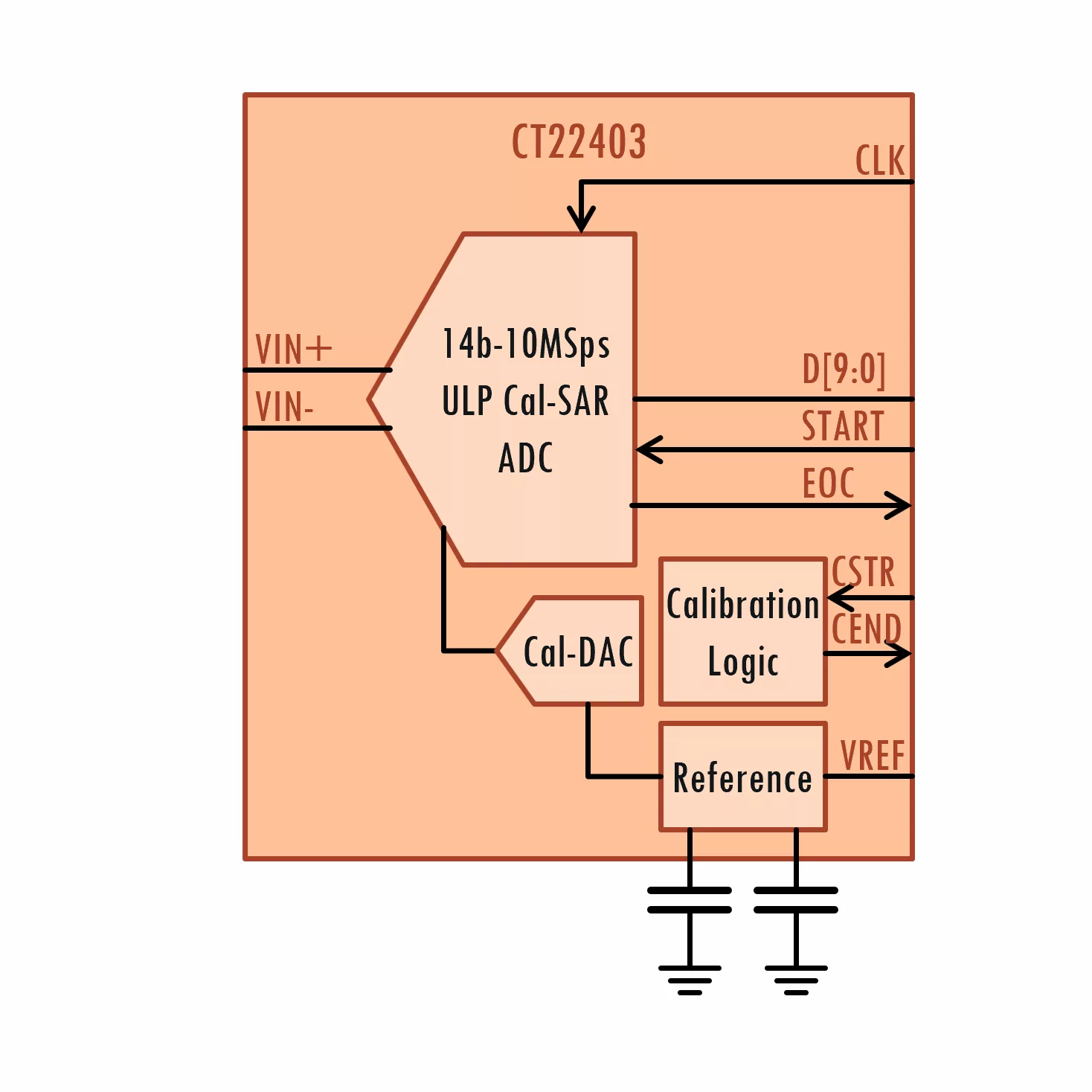

CT22403 block diagram
Applications
- Industrial process control
- Sensor measurement
- Power supply monitoring
Specifications
Identity
Part Number
CT22403
Vendor
Canova Tech Srl
Type
Silicon IP
Analog
Resolution bits
14 Bit
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Italy
