What is 14b-100KSps Cal-SAR ADC?
14b-100KSps Cal-SAR ADC is a ADC IP core from Canova Tech Srl listed on Semi IP Hub.
Vendor:
Canova Tech Srl
Category:
ADC
14b-100KSps Cal-SAR ADC
CT22404 is a 14-bit 100 kS/s Analog to Digital converter designed to deliver best in class performances in term of power consumpt…
Overview
CT22404 is a 14-bit 100 kS/s Analog to Digital converter designed to deliver best in class performances in term of power consumption. It is implemented with SAR architecture and offline calibration.
With 150uA total current consumption the figure of merit of the ADC is 300 fJ/step, that is at the state of the art for its frequency sampling range. The calibration time at maximum clock frequency in average mode for max precision is less than 2 ms. In case of single shot calibration it’s less than 200us.
Key features
- 14 bits, 100KSPS SAR AD Converter
- 0.18um Technology
- Supply 1.8V
- Single Ended Input, rail to rail
- Offline Calibration
- INL = ±2 LSB
- DNL = ±1 LSB (no missing codes)
- 150uA supply current
Block Diagram

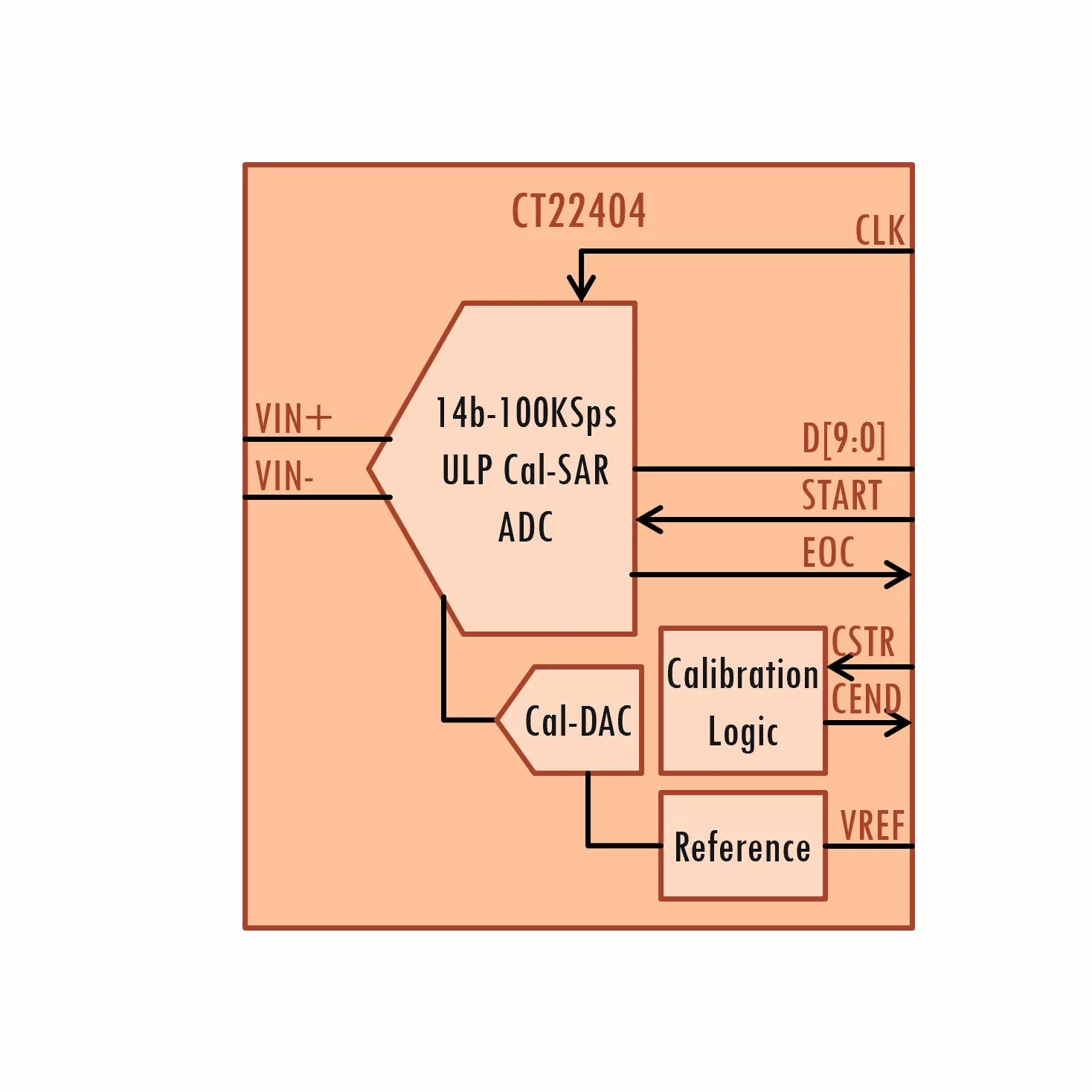

CT22404 block diagram
Applications
- Low Power Handled Portable devices
- Medical devices
- Embedded micro sensing
- Energy Harvesting devices
Specifications
Identity
Part Number
CT22404
Vendor
Canova Tech Srl
Type
Silicon IP
Analog
Resolution bits
14 Bit
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Italy
