1220 to 1610 MHz Image-rejection mixer
The mixer intended to perform a simultaneous RF signal carry, down conversion and image rejection.
Overview
The mixer intended to perform a simultaneous RF signal carry, down conversion and image rejection.
The block is fabricated on AMS BiCMOS 0.35 um technology
Key features
- AMS BiCMOS 0.35 um
- Operating frequency range 1220 to 1610 MHz
- High gain
- Gain temperature compensation mode
- Portable to other technologies (upon request)
Block Diagram

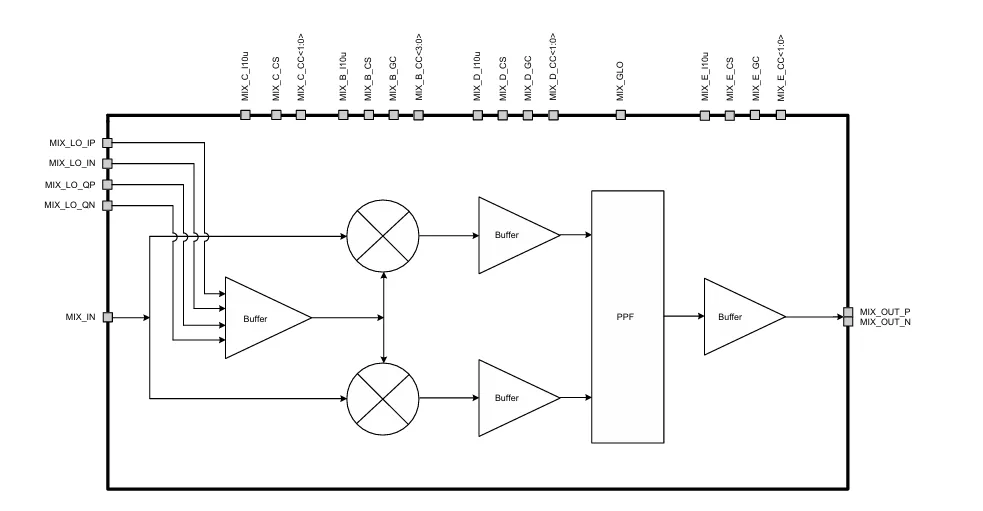

350AMS_MIX_06 block diagram
Applications
- Front-end HF signal amplification in receivers
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
350AMS_MIX_06
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
