12-bit 40nm 1.1V 80MHz Asynchronous-SAR IQ ADC

The TRV101TSM40LPIQ IP is a 1.1V low-power low-silicon-area 12-bit 80MHz Asynchronous-SAR IQ ADC implemented in TSMC Low-Power 40…

12 Bit TSMC 40nm G View all specifications

Overview

The TRV101TSM40LPIQ IP is a 1.1V low-power low-silicon-area 12-bit 80MHz Asynchronous-SAR IQ ADC implemented in TSMC Low-Power 40nm CMOS process technology. Its 40MHz Nyquist bandwidth makes it especially suitable for use in carrier-aggregated wireless communication integrated circuit subsystems (LTE, WiFi, WiMAX etc).

Key features

  • Rail-to-Rail Input Capability
  • Dual (I and Q) Channels
  • Scalable Power Consumption
  • No need for external high-speed SAR clock
  • Internal Calibration Engine
  • Selectable Two's Complement or Offset-binary data output
  • 65dB SNR

Block Diagram

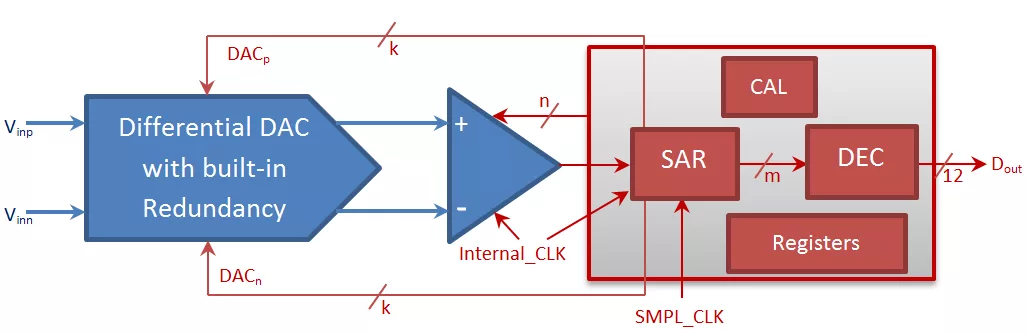

TRV101TSM40LPIQ block diagram

Benefits

  • Low-power and low-area fully-featured 12-bit IQ ADC with rail-to-rail reference and integrated calibration engine and compensation logic.

Applications

  • IQ ADC is suitable for embedding in ASIC and SoC subsystems for:
  • LTE, WiFi, WiMAX and many more

What’s Included?

  • Behavioural Models
  • Timing Models
  • GDSII Layout Database
  • Netlist for LVS verification
  • Usage and Integration Guidelines
  • Databook

Silicon Options

Foundry Node Process Maturity
TSMC 40nm G —

Specifications

Identity

Part Number
TRV101TSM40LPIQ
Vendor
Tetrivis
Type
Silicon IP

Analog

Resolution bits
12 Bit

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
