12-bit 2-channel up to 50 MSPS current steering DAC
180TSMC_DAC_07 is a 12-bit 50 MSPS dual current steering DAC contains two DAC cores, reference current, bandgap, configuration re…
Overview
180TSMC_DAC_07 is a 12-bit 50 MSPS dual current steering DAC contains two DAC cores, reference current, bandgap, configuration register. Core DAC is based on current steering architecture and contains control logic, current source, switches array and reference voltage. There are two operation modes: with external reference current and internal reference current, which independent from voltage supply, temperature and dependent from process variations of resistor. DAC has a feature of adjusting output current. A segmented DAC architecture and Q2 random walk algorithm are used. DAC requires: 3.0 ÷ 3.6 V analog supply, 3.0 ÷ 3.6 V digital supply, differential input clock signal with duty cycle 45 ÷ 55%. 12-bit 50 MSPS dual current steering DAC supports standby mode.
Key features
- TSMC CMOS 180 nm
- Resolution 12 bit
- Dual channel
- Different power supplies for digital (3.3 V) and analog parts (3.3 V)
- Sampling rate up 50 MSPS
- Standby mode (current consumption <100 nA)
- Power dissipation:
- 75.24 mW at 50 MSPS and 10 mA output current
- Differential current output range from 5 mA to 20 mA
- Spurious-free dynamic range:
- 87 dB at 50 MSPS and fin = 1.575 MHz and 10 mA output current
- 88 dB at 50 MSPS and fin = 11.513 MHz and 10 mA output current
- Signal-to-noise ratio:
- 70 dB at 50 MSPS and fin = 1.575 MHz and 10 mA output current
- 70 dB at 50 MSPS and fin = 11.513 MHz and 10 mA output current
- Signal-to-noise and distortion ratio:
- 70 dB at 50 MSPS and fin = 1.575 MHz and 10 mA output current
- 70 dB at 50 MSPS and fin =11.513 MHz and 10 mA output current
- Die area 0.67 mm2
- Portable to other technologies (upon request)

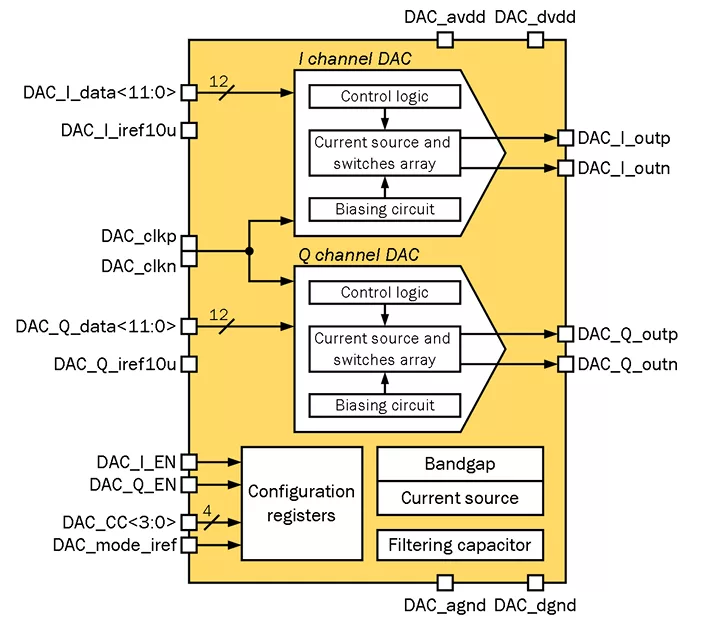

Block Diagram
180TSMC_DAC_07 block diagram
Applications
- Wireless infrastructures
- Broadband communications
- Picocell, femtocell base stations
- Medical instrumentation
- Ultrasound transducer excitation
- Signals and arbitrary waveform generators
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 180nm | BCDG2 | Silicon Proven |
Specifications
Identity
Part Number
180TSMC_DAC_07
Vendor
NTLab
Type
Silicon IP
Analog
Resolution bits
12 Bit
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
