What is 10-bit 1-channel constant power DAC?
10-bit 1-channel constant power DAC is a DAC IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
DAC
10-bit 1-channel constant power DAC
10-bit Constant power DAC employs a current steering DAC architecture with control loop, which adjusts DAC input code to keep pow…
Overview
10-bit Constant power DAC employs a current steering DAC architecture with control loop, which adjusts DAC input code to keep power dissipated in terminator constant. The block is easy to configure and operate, combining good accuracy and linearity. Several operation modes are available: constant power DAC, current DAC with output voltage monitoring, current DAC (manual mode), low-speed ADC. Output DAC current could be fed to one of two DAC outputs (DAC_OUT0 or DAC_OUT1) depending on Out_sel input.
Key features
- iHP SiGe BiCMOS 0.25 um
- Single 2.5 V supply voltage
- 22 mA full scale output current
- 0°C to 100°C operation
- 4 active operation modes
- Standby mode
Block Diagram

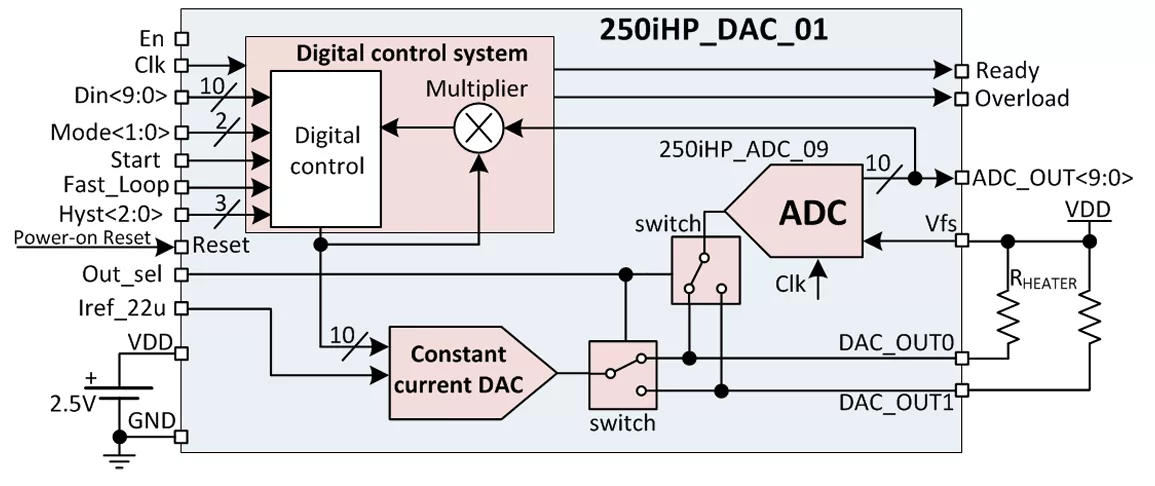

250iHP_DAC_01 block diagram
Applications
- Supply voltage stabilization systems
- Measurement and calibration systems
What’s Included?
- Schematic
- Layout
- Abstract view (.lef and .lib files)
- Verilog behavior model
- Verilog-A behavior model
- GDSII
- DRC, LVS, antenna reports
- Documentation
Specifications
Identity
Part Number
250iHP_DAC_01
Vendor
NTLab
Type
Silicon IP
Analog
Resolution bits
10 Bit
