10-bit 1-channel 100 MHz current DAC
The 10-bit dual high-speed DAC is based on current steering architecture, which provides high-speed conversion rate and good dyna…
Overview
The 10-bit dual high-speed DAC is based on current steering architecture, which provides high-speed conversion rate and good dynamic performance. DAC consists of three principal blocks: adjustable reference voltage and current generator, decoding logic, current source and output switches array. Device has a feature of adjusting output current and entering sleep mode, turning the device off. DAC requires 1.8 V analog and digital supply, and digital and analog ground to work properly. Pins dac[2:0] adjust DAC output current.
The device is implemented on technology SMIC EEPROM CMOS 0.18 um.
Key features
- SMIC EEPROM CMOS 0.18 um technology
- Resolution 10 bits
- 100 MSPS update rate
- High spurious free dynamic range performance up to 25 MHz output
- Adjustable output current (from 1.8 mA to 2 mA)
- Sleep mode (current consumption less than 200 nA)
- Portable to other technologies (upon request)

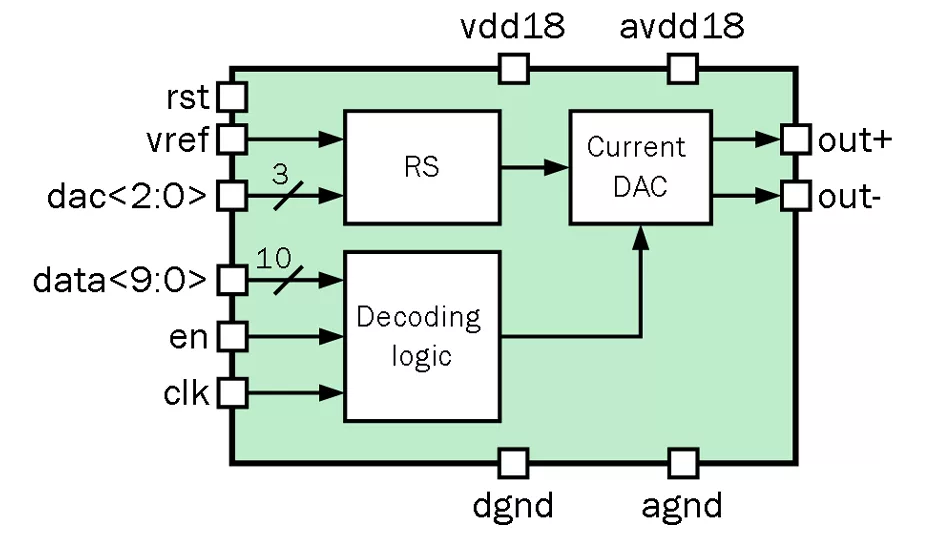

Block Diagram
180SMIC_DAC_01 block diagram
Applications
- Wireless infrastructures
- Picocell, femtocell base stations
- Medical instrumentation
- Ultrasound transducer excitation
- Signals generators, arbitrary waveform generators
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| SMIC | 180nm | G | Silicon Proven |
Specifications
Identity
Part Number
180SMIC_DAC_01
Vendor
NTLab
Type
Silicon IP
Analog
Resolution bits
10 Bit
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
