1.8-3.6V to 2.7-3.0V step up DC/DC converter

130iHP_DCDC_01 is a high-performance step up DC/DC converter designed to operate with 1.8-3.6V input voltage.

Contact Provider Request Datasheet

Overview

130iHP_DCDC_01 is a high-performance step up DC/DC converter designed to operate with 1.8-3.6V input voltage. The output voltage can be adjusted from 2.7V to 3.0V using Vadj<1:0>. DC/DC converter contains output voltage limit adjustment, overload protection and minimum voltage locking scheme. During start-up the DC/DC operates in soft start mode, which provides a gradual increase of the output voltage.

Key features

  • iHP SiGe BiCMOS 130nm
  • Maximal load current 250mA
  • Output voltage from 2.7 to 3.0V
  • Operating frequency from 0.6 to 1.5MHz
  • Up to 87% efficiency

Block Diagram

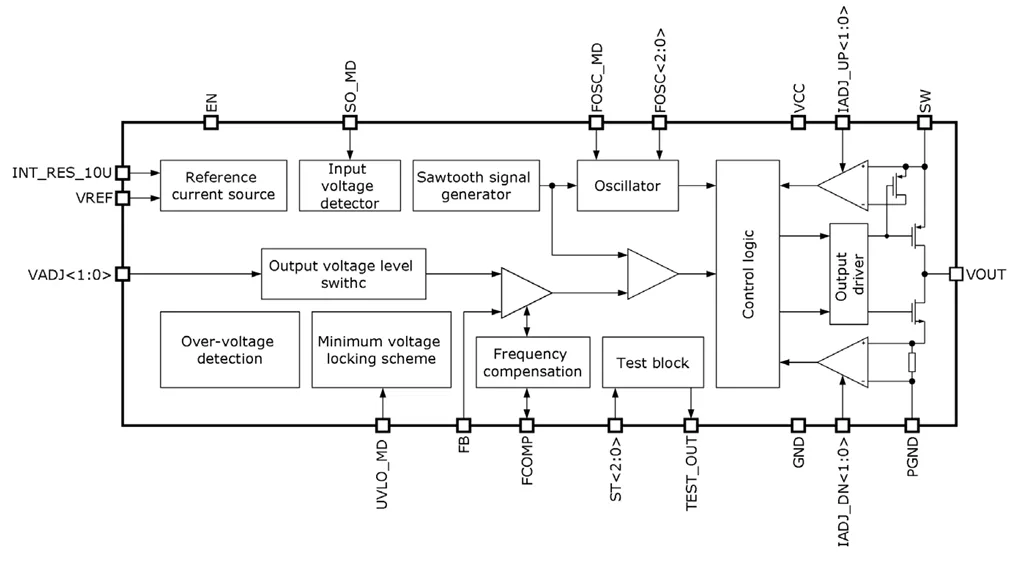

130iHP_DCDC_01 block diagram

Applications

  • Communication systems
  • Supply voltage sensitive circuits;

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation
