What is 0.8 V Brown Out Detector?
0.8 V Brown Out Detector is a Power On Reset (POR) IP core from Weasic Microelectronics listed on Semi IP Hub. It is listed with support for globalfoundries.
Vendor:
Weasic Microelectronics
Category:
Power On Reset (POR)
0.8 V Brown Out Detector
The WEABRW08187222G is a brown out sensor designed to monitor the 0.8 V power Supply.
Overview
The WEABRW08187222G is a brown out sensor designed to monitor the 0.8 V power Supply. It compares the supply Voltage with the fraction of the bandgap voltage reference and creates a digital alarm signal when the 0.8 V supply voltage fall below 0.72 V.
Key features
- Power Supplies : 0.8 V,1.8 V
- Fixed 10% Under Voltage Sensor
- Area: 165 um x 186 um
- Process : 22FDX
- Metal Option : 19

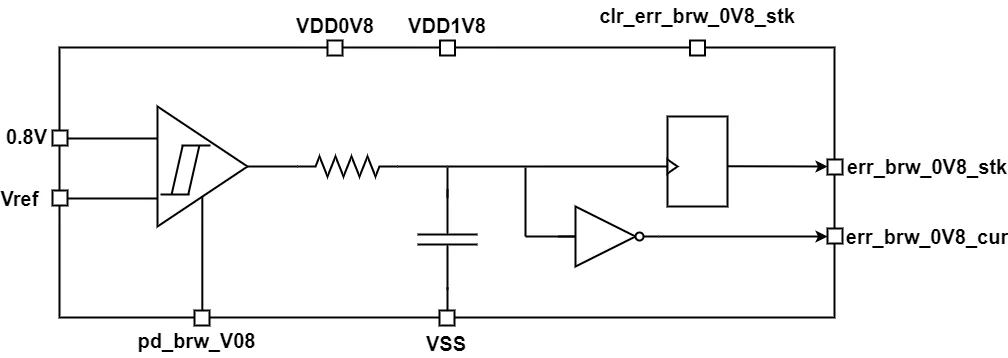

Block Diagram
WEABRW08187222G block diagram
Applications
- Automotive circuits, Power supply monitoring circuits, Power management circuits.
What’s Included?
- GDSII, Database, Measurement results, SystemVerilog Models
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEABRW08187222G
Vendor
Weasic Microelectronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Greece
