0.75-1.20 GHz quadrature former
The quadrature former with phase correction.
Overview
The quadrature former with phase correction. Quadrature signal is formed in the trigger cell by means of division by 2.
D-trigger synchronize output signal with input signal to minimize phase error.
The QF is designed using TSMC 65 nm CRN65LP technology.
Key features
- TSMC CMOS 65 nm
- Output frequency range 0.75-1.20 GHz
- Input signal division by 2
- 0.1 degree precise phase adjustment
- Strobing of output signal

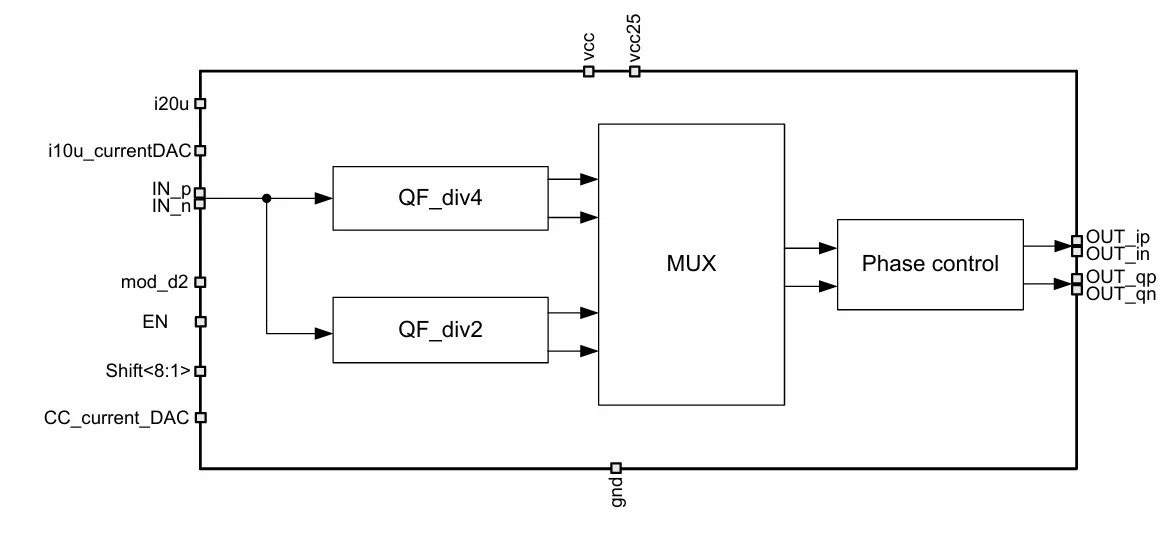

Block Diagram
065TSMC_QF_02 block diagram
Applications
- Quadrature signal processing for mixer
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 65nm | GP | Silicon Proven |
Specifications
Identity
Part Number
065TSMC_QF_02
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
