Vendor: NTLab Category: DC/DC Converter

0.1 to 25 MHz Phase-frequency detector with charge pump

180TSMC_PFD_03 is a phase-frequency detector (PFD) forms control signal for VCO tuning.

Contact Provider Request Datasheet
TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

180TSMC_PFD_03 is a phase-frequency detector (PFD) forms control signal for VCO tuning. PFD compares phases of divided VCO signal and divided reference oscillator signal and detects phase difference. Charge pump generates pulses for loop filter.


Key features

  • TSMC BiCMOS SiGe 180 nm
  • Input signals with low amplitude
  • Low disbalance of output current
  • Reference frequency from 0.1 MHz to 25 MHz
  • Output current from 44 uA to 647 uA
  • Portable to other technologies (upon request)

Block Diagram

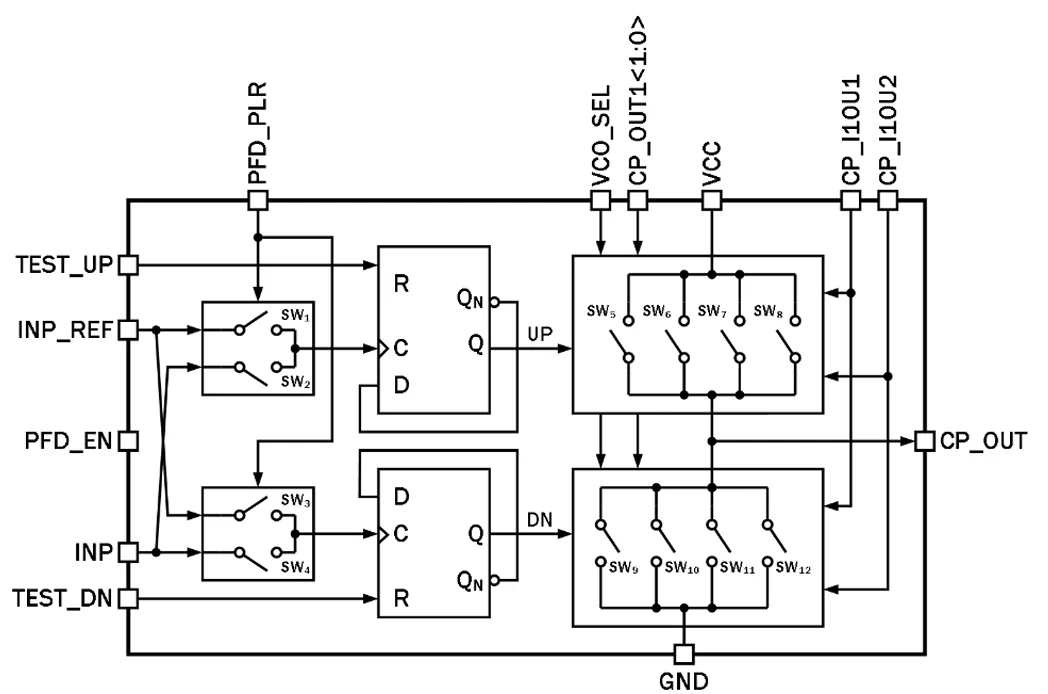

180TSMC_PFD_03 block diagram

Applications

  • Phase-locked loop synthesizer

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 180nm BCDG2 Silicon Proven

Specifications

Identity

Part Number
180TSMC_PFD_03
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab
