0.1 to 150 MHz LNA with 5 dB NF and 57 dB gain
065TSMC_LNA_09 is used to amplify signal from the radio receiver input in band up to 150MHz.
Overview
065TSMC_LNA_09 is used to amplify signal from the radio receiver input in band up to 150MHz. LNA has a low noise figure, high linearity and wide gain tuning range. LNA consists of three stages. Each stage is a linear differential amplifier. Input impedance of amplifier with transformer 1:3 is 50Ohm. LNA has an offset compensation block.
Key features
- TSMC CMOS 65 nm
- Wide frequency band
- High linearity
- Wide gain tuning range
- Linear (in dB scale) gain step with digital control
- 50 Ohm input impedance matching using one transformer
- Automatic offset compensation
- Portable to other technologies (upon request)
Block Diagram

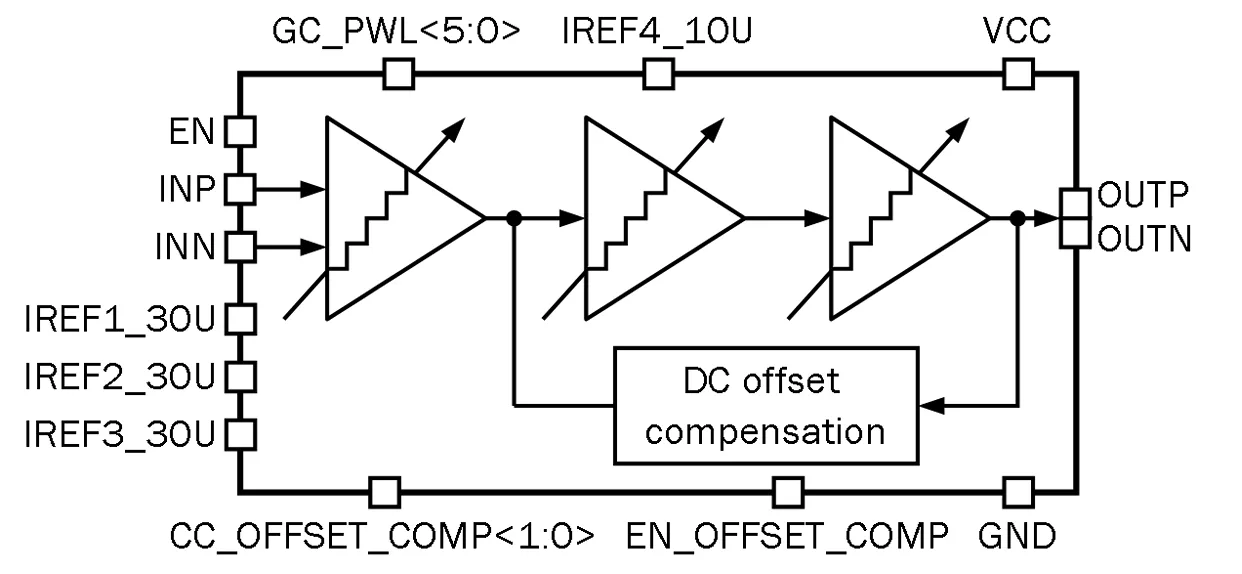

065TSMC_LNA_09 block diagram
Applications
- Front-end LF signal amplification in receivers
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 65nm | GP | Silicon Proven |
Specifications
Identity
Part Number
065TSMC_LNA_09
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
Learn more about RF Front End IP core
