WIDE IO2 Memory Model

WIDE IO2 Memory Model provides an smart way to verify the WIDE IO2 component of a SOC or a ASIC.

Contact Provider Request Datasheet

Overview

WIDE IO2 Memory Model provides an smart way to verify the WIDE IO2 component of a SOC or a ASIC. The SmartDV's WIDE IO2 memory model is fully compliant with standard WIDE IO2 Specification and provides the following features. Better than Denali Memory Models.

WIDE IO2 Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

WIDE IO2 Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Key features

  • Supports WIDE IO2 memory devices from all leading vendors.
  • Supports 100% of WIDE IO2 protocol standard JESD229-2.
  • Supports all the WIDE IO2 commands as per the specs.
  • Quickly validates the implementation of the WIDE IO2 standard JESD229-2.
  • Support Programmable burst lengths: 4,8.
  • Checks for following
    • Check-points include power up, initialization and power off rules
    • State based rules, Active Command rules
    • Read/Write Command rules etc.,
    • All timing violations
  • Supports for All Mode registers programming.
  • Supports Write data Mask and data bus inversion.
  • Supports for GPIO Mode test access.
  • Supports for Post Package Repair.
  • Supports for Power Down features.
  • Supports for TRR mode.
  • Supports for input clock stop and frequency change.
  • Supports for full-timing as well as behavioral versions in one model.
  • Supports for all timing delay ranges in one model: min, typical and max.
  • Constantly monitors WIDE IO2 behavior during simulation.
  • Protocol checker fully compliant with WIDE IO2 Specification JESD229-2.
  • Models, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
  • Built in functional coverage analysis.
  • Supports Callbacks, so that user can access the data observed by monitor.

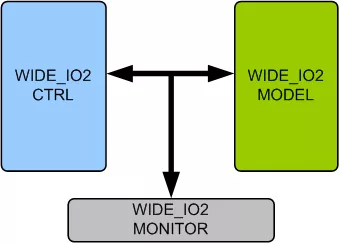

Block Diagram

WIDE IO2 Memory Model block diagram

Benefits

  • Faster testbench development and more complete verification of WIDE IO2 designs.
  • Easy to use command interface simplifies monitor control and configuration.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

What’s Included?

  • Complete regression suite containing all the WIDE IO2 testcases.
  • Examples showing how to connect and usage of Model.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
WIDE IO2 Memory Model
Vendor
SmartDV Technologies

Provider

SmartDV Technologies
HQ: India
At SmartDV Technologies™, we believe there’s a better way to approach semiconductor intellectual property (IP) for integrated circuits. We’ve been focused exclusively on IP since 2007—so whether you’re sourcing standards-based design IP for your next SoC, ASIC, or FPGA, or seeking verification solutions (VIP) to put your chip design through its paces, you’ll find SmartDV’s IP straightforward to integrate. By combining proprietary SmartCompiler™ technology with the knowledge of hundreds of expert engineers, SmartDV can customize IP to meet your unique design objectives: quickly, economically, and reliably. Don’t allow other suppliers to force onesize-fits-all cores into your chip design. Get the IP you need, tailored to your specifications, with SmartDV: IP Your Way.
Contact SmartDV Technologies
