HMC2 Verification IP

The HMC Verification IP provides an effective & efficient way to verify the HMC components of an ASIC/FPGA or SoC i.e.

Contact Provider Request Datasheet

Overview

The HMC Verification IP provides an effective & efficient way to verify the HMC components of an ASIC/FPGA or SoC i.e. Host or Device. The HMC VIP is fully compliant with Standard HMC Version 2.0 specifications from HMCC. This VIP is a light weight VIP with easy plug-and-play interface so that there is no hit on the design time and the simulation time.

Key features

  • Compliant with Standard HMC Version 2.0 specification.
  • Supports 4GB configuration - 256 memory banks and 8GB configuration – 512 memory banks.
  • Supports Closed-bank memory architecture.
  • Supports Built-in memory controller for each vault – Automatic refresh control over all temperatures.
  • Supports internal ECC data correction.
  • Supports advanced RAS features including data scrubbing.
  • Supports Post-assembly repair capability.
  • Supports In-field repair for ultimate reliability.
  • supports 16 Lane(Full width) , 8 Lane(Half width), 4 Lane(Quarter width) full duplex serialized Link.
  • Supports PRBS15 as well as PRBS31 scrambler/descrambler Modes.
  • Supports Up to 320 GB/s effective bandwidth.
  • Packet based data/command interface.
  • Supports 16,32,48,64,80,96,112,128 and 256 byte references per request.
  • Supports Error detection for packets with automatic retry.
  • Power Management supported per link.
  • Reports various error signals, which can be used to check for any error.
  • Provides full control to the user to enable / disable various types of messages.
  • Supports full timing models or bus functional models.
  • Supports advanced SystemVerilog features like constrained random testing.
  • Supports dynamically configurable modes.
  • Strong Protocol Monitor with real time exhaustive programmable checks.
  • Supports Dynamic as well as Static Error Injection scenarios.
  • On the fly protocol checking using protocol check functions, static and dynamic assertion.
  • Built in Coverage analysis.
  • Provides a comprehensive user API (callbacks) in Monitor, Controller and Memory Model BFMs.
  • Graphical analyser to show transactions for easy debugging.

Block Diagram

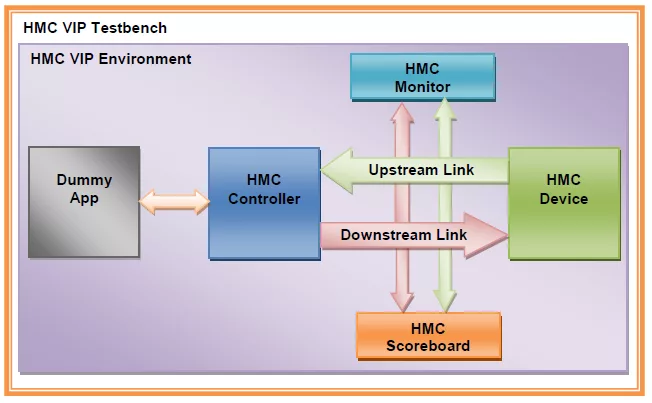

HMC block diagram

Benefits

  • Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and cover points with connectivity example for all the components
  • Consistency of interface, installation, operation and documentation across all our VIPs
  • Provide complete solution and easy integration in IP and SoC environment

What’s Included?

  • HMC Controller BFM
  • HMC Device
  • HMC Monitor and Scoreboard
  • Test-Bench Configurations
  • Test Suite (Available in Source code)
    • Basic Protocol Tests
    • Directed & Random Tests
    • Error Injection Tests
    • Assertions & Cover Point Tests
  • Integration Guide, User Manual and Release Note
