Hardware RTP Stack for H.264 Stream Decapsulation

Implements a Real Time Transport Protocol (RTP) hardware stack that extracts H.264/NAL streams encapsulated in RTP packets.

Contact Provider Request Datasheet

Overview

Implements a Real Time Transport Protocol (RTP) hardware stack that extracts H.264/NAL streams encapsulated in RTP packets.

The RTP2H264 core is compatible with RTP packets produced by CAST’s H.264 to RTP encapsulation core (H2642RTP). The output of the RTP2H264 can be directly connected to the input of an H.264 decoder core. Along with CAST’s UDP/IP hardware stack, the RTP2?264 core is ideal for offloading the demanding task of RTP/UDP/IP de-capsulation from a host processor, and enables H.264 video streaming even in processor-less SoC designs.

The core is easy to integrate in systems with or without a host processor. H.264 stream and RTP packet data can are input/output via dedicated streaming-capable interfaces, enabling direct connection to hardware video encoders and hardware stacks for UDP or TCP. Status and control registers are accessible by an AXI4-Lite interface.

The RTP2H264 core is available in RTL source or as a targeted FPGA netlist. Platforms integrating the core along H.264 decoder, UDP/IP, and eMAC cores, are also available from CAST, and can enable rapid development of video over IP systems.

Key features

  • RTP Decapsulation for H.264 NAL Streams
    • Compatible with RTP streams produced by CAST’s H264 to RTP encapsulation core.
    • Support for other RTP encapsulation stacks possible on request.
  • Easier Integration For Faster Development
    • Processor-less, standalone operation
    • AMBA® - AXI Interfaces
      • AXI4-Lite Control/Status register interfaces
      • AXI4-Streaming interfaces for packet data
    • Available pre-integrated with:
      • H.264 Video Decoder cores from CAST
      • UDP/IP Hardware Stack from CAST
      • CAST, Intel, Xilinx, or other third-party eMAC core

Block Diagram

RTP2H264 block diagram

Applications

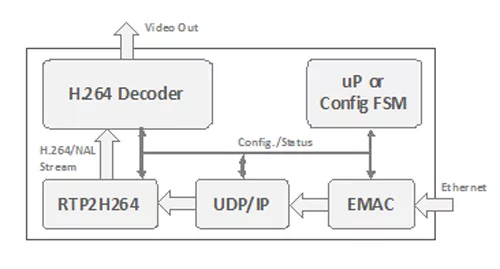

  • The RTP2?264 core is suitable for a wide variety systems and devices featuring H.264 video streaming over IP networks. A sample block diagram of such systems is provided below.

What’s Included?

  • Synthesizable Verilog RTL or FPGA netlist
  • Testbench & sample test cases
  • Simulation & synthesis scripts
  • Documentation
