WebM VP8 Video Encoder Hardware IP

The WebM VP8 (H1) hardware encoder brings an unprecedented level of performance to enable all kinds of WebM video applications.

Contact Provider Request Datasheet
SMIC 40nm Silicon Proven View all specifications

Overview

The WebM VP8 (H1) hardware encoder brings an unprecedented level of performance to enable all kinds of WebM video applications. It is the first hardware encoder in the market to encompass full WebM video support, significantly extending the real-time video conferencing/screen sharing of Internet-connected and HTML5-enabled battery operated devices.

Intended for chipsets targeting multimedia devices (Smart DTVs, HD set-top boxes, smart phones, tablets, Chromebooks, etc.), the WebM VP8 H1 Encoder is built on silicon-proven designs deployed in millions of chips worldwide, and provides semiconductor manufacturers with a minimal risk solution for integrating high performance video capability to their chipsets.

The video encoder design is exceptionally fast, requiring less than 220MHz clock frequency to encode VP8 video 1080p@30fps. The core supports unlimited VP8 multi-channel encoding, enabling simulcast for multiparty video chat applications. It uses unique pre-fetching and buffering mechanisms to enable smooth operation with low-end SDRAMs, realizing significant savings in power and overall chip design and manufacturing costs.

the H-Series 1 is highly power efficient, consuming less than 80 milliwatts for full HD video encoding, and less than 20 milliwatts for SD video.

Key features

  • Silicon area: 1073kGates, 174/113 kBytes single-port SRAM (max/min search area configuration)
  • Synthesizable clock frequency: up to 420 MHz (TSMC65nm LP, topographical synthesis)
  • Easy back-end: Single clock domain;low number of isolated single port SRAM and clock gating elements; no dual port memories.
  • Performance configuration: choose internal memory size according to your resolution requirement - up to 1080p.
  • Target SoC configuration: choose the bus protocol interface from AHB, AXI, OCP and APB.
  • Easy application development: simple application programming interface (API)

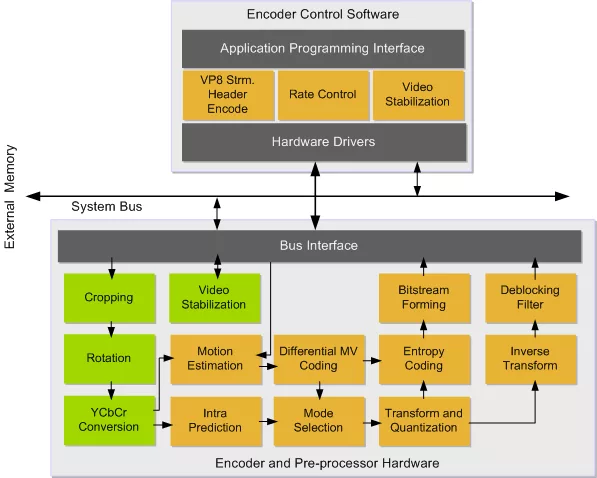

Block Diagram

H1 VP8 Video Encoder block diagram

Applications

  • Smart phones, tablets, smart DTVs, set-top boxes, Chromebooks, etc.

What’s Included?

  • RTL source code (VHDL or Verilog) with RTL test bench and test data.
  • ANSI C source code for hardware drivers, with software test bench and test data.
  • Technical documentation: hardware and software integration guides and application programming interface (API) manuals.
  • Reference C-model (bit-accurate with RTL)

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
SMIC 40nm 40nm 400 nm Silicon Proven

Specifications

Identity

Part Number
H1 VP8 Video Encoder
Vendor
WebM - Open Web Media Project

Provider

WebM - Open Web Media Project
HQ: Finland
Intended for chipsets and ASICs targeting multimedia devices (HD set-top boxes, mobile devices, netbooks, webcams, etc.), the WebM encoder and decoder hardware IP is built on technology developed by Google’s Oulu, Finland office. This group has developed silicon-proven designs deployed in hundreds of millions of chips worldwide, and provides semiconductor manufacturers with a minimal-risk solution for integrating WebM video capability with their chipsets. The WebM video hardware IP designs support encoding and decoding WebM/VP8 video up to 1080p resolution. Implemented as RTL source code (VHDL or Verilog), both WebM IP designs are currently available to semiconductor companies having firm plans to ship VP8-supporting products. A written, no-cost agreement is required. Visit www.webmproject.org/hardware for more details.
