Vendor: Dream Chip Technologies GmbH Category: Video Processing

Real-time Pixel Processor for Vision applications

Dream Chip’s Real-time Pixel Processor for Vision applications is a scalable and configurable Wide Dynamic Range (WDR) capable im…

Contact Provider Request Datasheet

Overview

Dream Chip’s Real-time Pixel Processor for Vision applications is a scalable and configurable Wide Dynamic Range (WDR) capable image signal processor (ISP). The processing pipeline consists of all necessary modules allowing to output WDR tone mapped images.

The W Series provides configurable input and output data widths. It supports input image frames with 8 to 16-bit amplitude resolutions, while it can output tone-mapped frames with 12 bits per pixel.

The W Series are ISPs which are optimized for area while getting the best image quality. Options to extend pipeline with a Machine Vision output or fusion of multiple input interfaces are possible.

Specification:

Sensor input Bayer / clear pixel / mono
RGGB / RCCB / RCCC
  Configurable 16-bit input – up to 64 Mpix resolution
Throughput 1.3 gigapixels / second, e.g. 16 MP @ 60 fps
ISP output Streaming output for Human Vision (Machine Vision – optional)



Key features

  • Modular approach
  • Scalable resolution up to 64 MP
  • Customizations
  • Low latency
  • Area-optimized
  • FPGA validation platforms available
  • Tests with different sensors
  • Calibration tools
  • Bit-true simulation tools
  • Software example code

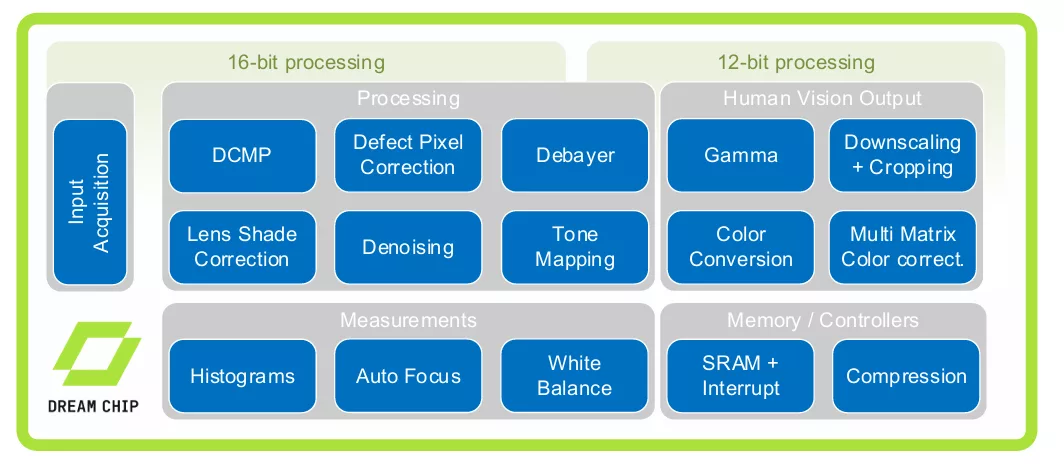

Block Diagram

ISP-W114 block diagram

Applications

  • Surveillance / Security
  • High resolution Consumer
  • Wearables
  • Industrial
  • Factory automation
  • Robotics
  • Image capture
  • Digital video recording

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
ISP-W114
Vendor
Dream Chip Technologies GmbH

Provider

Dream Chip Technologies GmbH
HQ: 30827 Garbsen
Dream Chip Technologies GmbH (DCT) is a German fabless semiconductor technology company, specialized in the development of custom ASICs and SoCs, along with required embedded software, with a strong application focus on automotive vision systems. Companies worldwide from different industrial sectors rely on DCT's expertise and outstanding engineering skills. Our strong development team brings more than 25 years of SoC and Embedded SW design experience to customers. The main strength of the company is chip design, image signal processing, device inter-networking and autonomous systems. The company now has more than 120 engineers in Germany and the Netherlands.
