Dream Chip’s Real-time Pixel Processor for Vision applications is a scalable and configurable Standard Dynamic Range (SDR) capabl…

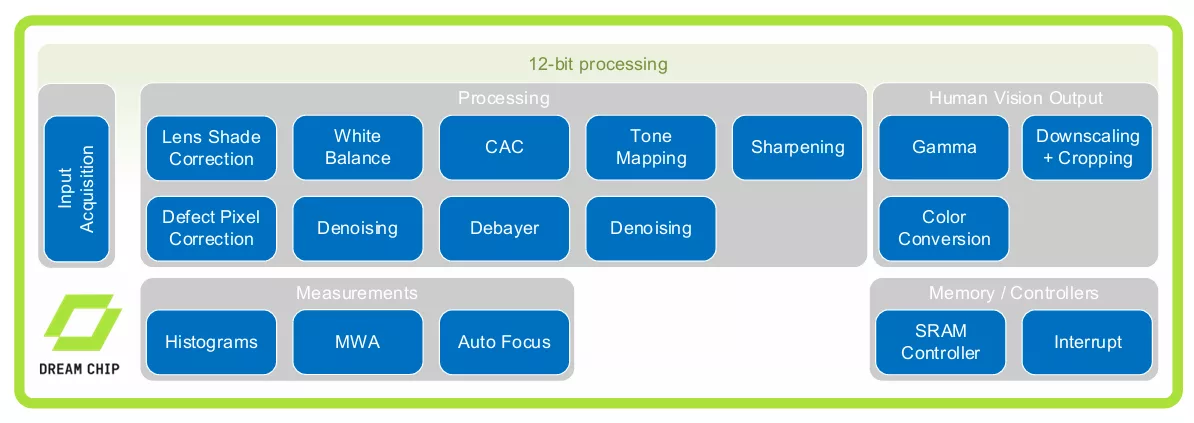

Dream Chip’s Real-time Pixel Processor for Vision applications is a scalable and configurable Standard Dynamic Range (SDR) capable image signal processor (ISP). The processing pipeline consists of all necessary modules allowing to output the highest possible quality.
The H Series provides configurable input and output data widths. It accepts YCbCr or RAW input data and supports input image frames with 8, 10 and 12-bit amplitude resolutions.
The H1 Series are ISPs which are optimized for area while getting the best image quality. Options to extend the pipeline with a Machine Vision output or configuring the line size to further optimize area are possible.
Extensions for functional safety can be included in accordance with ISO26262 to support automotive applications.
Specification:
| Sensor input | Bayer / clear pixel / mono RGGB / RCCB / RCCC |
| Configurable 12-bit input – up to 64 Mpix resolution | |
| Throughput | 1.3 gigapixels / second e.g. 16 MP @ 60 fps, 640x480 @ 240 fps |
| ISP output | Streaming output for Human Vision (Machine Vision – optional) |
Note: some files may require an NDA depending on provider policy.
