Vendor: Dream Chip Technologies GmbH Category: Video Processing

Real-time Pixel Processor for Vision applications

Dream Chip’s Real-time Pixel Processor for Vision applications is a scalable and configurable Standard Dynamic Range (SDR) capabl…

Contact Provider Request Datasheet

Overview

Dream Chip’s Real-time Pixel Processor for Vision applications is a scalable and configurable Standard Dynamic Range (SDR) capable image signal processor (ISP). The processing pipeline consists of all necessary modules allowing to output the highest possible quality.

The H Series provides configurable input and output data widths. It accepts YCbCr or RAW input data and supports input image frames with 8, 10 and 12-bit amplitude resolutions.

The H2 Series has a Machine Vision output essential for advanced vision applications.

Specification:

Sensor input Bayer / clear pixel / mono
RGGB / RCCB / RCCC
  Configurable 12-bit input – up to 64 Mpix resolution
Throughput 1.3 gigapixels / second e.g. 16MP @ 60 fps, 640x480 @ 240 fps
ISP output Streaming output for Machine Vision




Key features

  • Modular approach
  • Scalable resolution up to 64 MP
  • Customizations
  • Low latency
  • Area-optimized
  • FPGA validation platforms available
  • Tests with different sensors
  • Calibration tools
  • Bit-true simulation tools
  • Software example code

Block Diagram

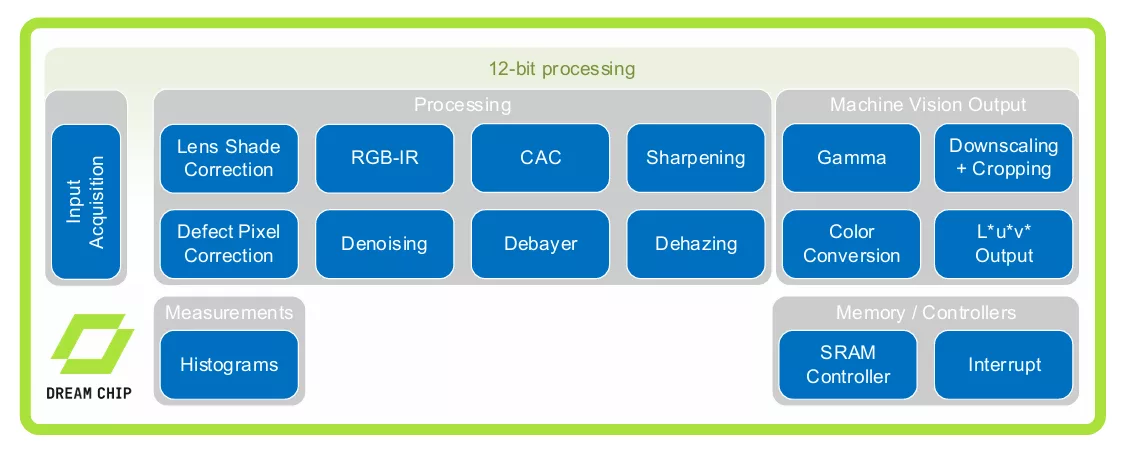

ISP-H214 block diagram

Applications

  • Industrial & Robotic Applications
  • Machine Vision Applications
  • Industrial automation
  • Biometric authentication
  • Bar code scanning

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
ISP-H214
Vendor
Dream Chip Technologies GmbH

Provider

Dream Chip Technologies GmbH
HQ: 30827 Garbsen
Dream Chip Technologies GmbH (DCT) is a German fabless semiconductor technology company, specialized in the development of custom ASICs and SoCs, along with required embedded software, with a strong application focus on automotive vision systems. Companies worldwide from different industrial sectors rely on DCT's expertise and outstanding engineering skills. Our strong development team brings more than 25 years of SoC and Embedded SW design experience to customers. The main strength of the company is chip design, image signal processing, device inter-networking and autonomous systems. The company now has more than 120 engineers in Germany and the Netherlands.
