Body bias voltage generator - GLOBALFOUNDRIES 22FDX

Overview

The ABX Generator IP is a body bias voltage generator for the ABX Platform for GLOBALFOUNDRIES 22FDX® technology. It contains a closed loop body bias regulation loop to generate N-well and P-well bias voltages for adaptive compensation of process, voltage and temperature (PVT) variations during device operation.

Specification

  • fref =10MHz
  • Pactive <10µW
  • Area <0.0062mm²
  • -0.2V<VNW<2.4V
  • -2.4V<VPW<0.2V

Supply Voltages [V]

  • Body bias generation: 1.80V
  • Control logic: 0.80V
  • PVT monitors: 0.40V/ 0.45V/ 0.50V/ 0.60V/ 0.65V/ 0.80V/ 0.90V

Key Features

  • Integrated adaptive body bias control loop
  • Charge pumps for N-Well and P-Well voltages, operated from IO supply voltage level, reverse bias capability
  • Integrated PVT monitors
  • True Independent regulation of NMOS and PMOS performance
  • Operation from typically 10 MHz reference clock, optionally use of Racyics ULP 10 MHz Clock Generator to run from clocks down to 32 kHz.
  • Supports forward (FBB) and reverse body bias (RBB)
  • Available in multiple charge pump drive strengths supporting a wide range of active chip areas
  • Delivered as hardmacro for seamless integration
  • Power consumption <10 µW

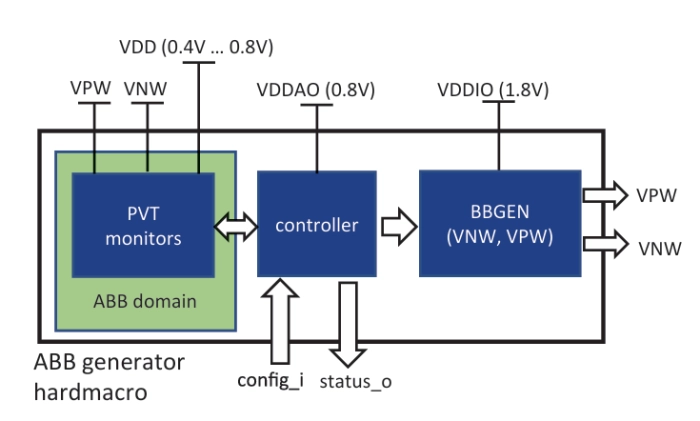

Block Diagram

Body bias voltage generator - GLOBALFOUNDRIES 22FDX Block Diagram

Deliverables

  • Verilog simulation models
  • .lib/.db timing and power models
  • .lef layout abstract views
  • Milkyway database
  • GDSII layout
  • LVS netlist

Technical Specifications

Short description
Body bias voltage generator - GLOBALFOUNDRIES 22FDX
Vendor
Vendor Name
Foundry, Node
GLOBALFOUNDRIES 22FDX
Maturity
silicon-proven
GLOBALFOUNDRIES
Pre-Silicon: 22nm FDX
Silicon Proven: 22nm FDX
