Vendor: Smartlogic GmbH Category: Protocol Bridge

AXI Bridge with DMA for PCIe IP Core

The AXI Bridge with DMA IP core is the ultimate PCIe DMA IP solution with a mix of multiple industry standard AXI Interfaces.

Contact Provider Request Datasheet

Overview

The AXI Bridge with DMA IP core is the ultimate PCIe DMA IP solution with a powerful mix of multiple industry standard AXI Interfaces. AXI Stream interfaces allow continuous data streaming from FPGA to Host or from Host to FPGA. S-AXI Memory mapped interfaces allow easy data access of remote memories in order to realize shared memory access or per to peer applications.

All interfaces support fully parallel operation without any interferences. Interfaces that are not required can be turned off individually and do not occupy logic resources.

This IP core enables the developer to build complex PCI Express endpoints with no specific PCI Express protocol know-how. The user only transmits or receives payload data and does not have to assemble valid PCI Express packets. A powerful kernel mode device driver is shipped with the IP for Windows or Linux operating systems to ensure easy software integration of the core.

Key features

  • Lowest logic resource count in the industry
  • Utilizes built-in HardFIFOs (AMD devices only)
  • Multi-channel architecture
  • Continuous high throughput data streaming
  • Non-blocking approach, an incomplete AXI Stream packet does not block other AXI interfaces
  • Up to 4 S-AXI interfaces for AXI2PCIe bridge applications (incl peer to peer applications) with up to 6 AXI BARs and dynamic address translation registers
  • Up to 16 AXI Stream Slave interfaces
  • Up to 16 AXI Stream Master interfaces
  • Up to 8 AXI Masters to interface user registers
  • User transmits / receives only user data without PCIe protocol knowledge
  • Built in completion sorting: S-AXI read requests are answered always in the requested order
  • Tandem, MSI and MSI-X supported
  • Based on AMD / Lattice integrated PCI-Sig compliant PCIe Block (HardIP)
  • Link speed Gen 1-4, link widths x1-x8

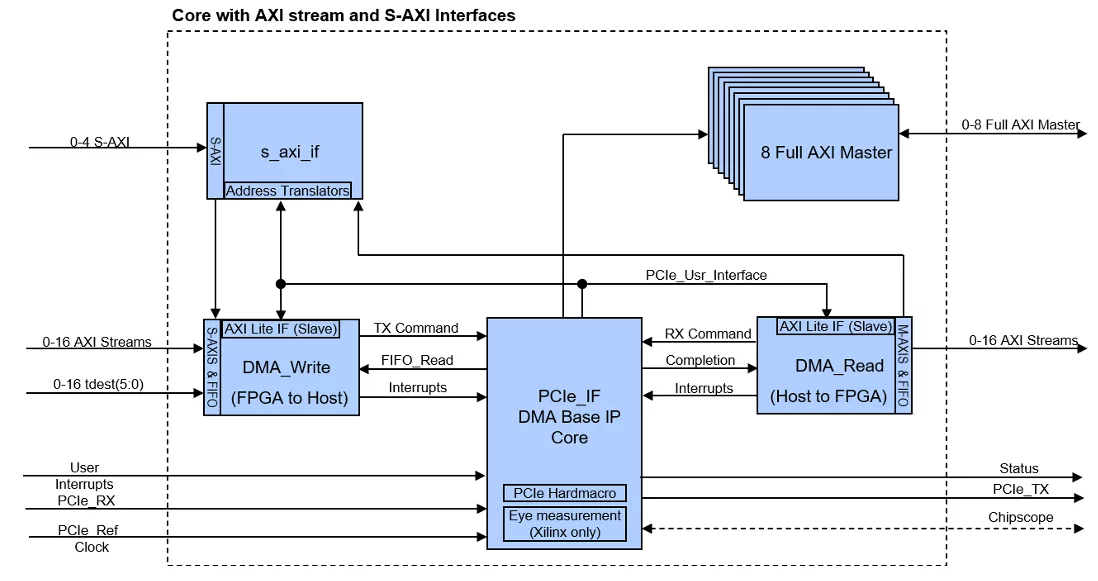

Block Diagram

AXI Bridge with DMA for PCIe IP Core block diagram

What’s Included?

  • Encrypted VHDL Source Code for easy Designflow integration
  • Comprehensive User Guide
  • Reference Design
  • Windows / Linux Driver Package (Option)
  • PCI-Express Testbench with High Speed simulation mode
  • Technical support

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
AXI Bridge with DMA for PCIe IP Core
Vendor
Smartlogic GmbH

Provider

Smartlogic GmbH
HQ: Germany
Smartlogic GmbH - Creating smart FPGA / ASIC solutions, PCI Express cores. Our engineering team meets highest standards regarding FPGA / ASIC Know How and skills. We will provide professional advice in new product development as well as in redesigns of obsolete ASICs. We also deliver medium and smaller numbers. With our PCI Express IP Core Suite our complete PCI-Express Know-How is at your disposal for your own designs. Smartlogic is accredited XILINX ALLIANCE Partner.
Contact Smartlogic GmbH
