AXI Verification IP
The AMBA-AXI VIP provides a solution for verification of AMBA-AXI protocol version 2.0.
Overview
The AMBA-AXI VIP provides a complete solution for verification of AMBA-AXI protocol version 2.0. The AXI verification IP is fully compatible with standard AXI 3 protocol. This VIP is supported natively in System Verilog UVM.
Key features
- Separate address/control and data phases
- Support for unaligned data transfers using byte strobes
- Burst-based transactions with only start address issued
- separate read and write data channels to enable low-cost Direct Memory Access (DMA)
- Ability to issue multiple outstanding addresses
- Out-of-order transaction completion
- Easy addition of register stages to provide timing closure

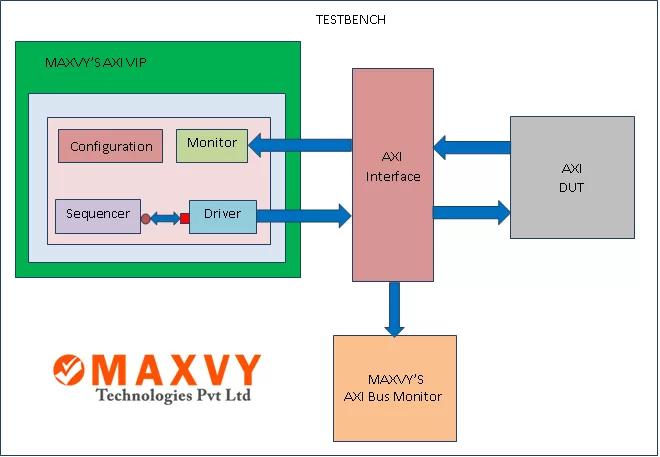

Block Diagram
AXI VIP block diagram
Benefits
- Availability in pure System Verilog and UVM
- Unique development to ensure highest level of quality
- Availability of Compliance & Regression test suites
- Unique and customizable licensing models
- Supports directed random and fully random tests
- Supports environment configuration of VIP based on DUT
- Monitors and Checkers for protocol violation
- Coverage model for functional coverage
What’s Included?
- VIPuser guide
- AXI VIP encrypted source code
- Sample Testbench top
- Sample scoreboard
- Assertions and coverage model
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
AXI VIP
Vendor
MAXVY Technologies Pvt Ltd
Provider
MAXVY Technologies Pvt Ltd
HQ:
India
MAXVY is a fast growing company which is currently engaged in the fields of Semiconductor.
We offer our services to shape your concept to products (Silicon Chips), which includes Embedded Product Design, RTL design and Verification, Analog and Mixed Signal System Design and Analysis, Physical Design etc...
