AHB Lite Verification IP
The AHB Verification IP provides a solution for Verification of AMBA 3.0 AHB-Lite protocol v1.0 component of a SOC or ASIC.
Overview
The AHB Verification IP provides a complete solution for Verification of AMBA 3.0 AHB-Lite protocol v1.0 component of a SOC or ASIC. The AHB-Lite Verification IP is fully compliant with standard AMBA 3 AHB-Lite Specification. AMBA 3.0 AHB-Lite VIP is supported natively in SystemVerilog and UVM.
Key features
- Fully compliant with AMBA 3.0 AHB-Lite of the ARM specification.
- Supports AHB Lite Operation.
- Configurable as a full AHB Lite Master, Slave.
- Supports Multi-Master and Multi-Slave System(Optional).
- Supports pipelined operation.
- Parameterized data and address widths.
- Supports all transfer types (IDLE, BUSY, NONSEQ & SEQ) and burst transfers (4, 8, 16 bit incrementing and wrapping).
- Supports controllable wait states.
- Supports early burst termination.
- Supports insertion of delays by slave and master.
- Configuration of lock and unlock transfer.
- Supports big endian and little endian mode.
- Supports various error injection and detection.
- Supports Configurable memory in slave operation.
Block Diagram

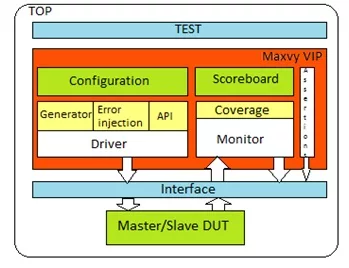

AHB Lite Master/Slave VIP block diagram
Benefits
- Available in Pure System Verilog and with UVM methodology Support.
- Unique development methodology to ensure highest levels of quality.
- Availability of Compliance & Regression Test Suites.
- 24X5 customer support.
- Unique and customizable licensing models.
- Exhaustive set of assertions and coverage points with connectivity example for all the components.
- Consistency ofinterface, installation ,operation and documentation across all our VIPs.
- Supports directed random & fully random tests.
- Supports Environment configuration of VIP based on the DUT.
- Includes scoreboard for end to end data integrity check.
- Monitors & checkers for protocol violations.
- Coverage model for functional coverage.
What’s Included?
- VIP User’s guide.
- AHB Lite VIP Encrypted source code.
- Sample Test bench Top.
- Sample Scoreboard& Sanity test.
- Assertions and coverage model.
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
AHB Lite Master/Slave VIP
Vendor
MAXVY Technologies Pvt Ltd
Provider
MAXVY Technologies Pvt Ltd
HQ:
India
MAXVY is a fast growing company which is currently engaged in the fields of Semiconductor.
We offer our services to shape your concept to products (Silicon Chips), which includes Embedded Product Design, RTL design and Verification, Analog and Mixed Signal System Design and Analysis, Physical Design etc...
