AMBA AHB 5 Verification IP

The AMBA 5 AHB Verification IP provides an effective & efficient way to verify the components interfacing with AMBA®5 AHB bus of …

Contact Provider Request Datasheet

Overview

The AMBA 5 AHB Verification IP provides an effective & efficient way to verify the components interfacing with AMBA®5 AHB bus of an IP or SoC.
The AMBA 5 AHB VIP is fully compliant with standard AMBA 5 AHB specification from ARM. This VIP is a light weight VIP with easy plug-andplay interface so that there is no hit on the design cycle time.

Key features

  • Compliant to AMBA®5 AHB Protocol specifications and AMBA 3 AHB-Lite Verification IP from ARM
  • Support for all type of AMBA AHB devices:
    • AHB5Master
    • AHB5Slave
  • Wide range of strict programmable protocol checks
  • Bus assertion for all protocol scenarios
  • Support bus endianess conversion.
  • Fully compliant to inter connect matrix
  • Both little & big bus endianness supported. In big endian Byte-invarient and Word-invarient also supported.
  • Support for all protocol transfer types, burst transfers and transfer sizes
  • All type of memories supported ,like in device memory Device-nE ,Device -E and in normal memory Non-cacheable, Write-through, Write-back type.
  • Both secure and non-secure transfer are supported.
  • Supports Callback in Master, Slave, Monitor and Scoreboard
  • Exclusive transfer supported with exclusive monitoring component.
  • Supports stable signal as well as generation of glich in between clock edge as per selected configuration mode
  • Complete static and dynamic assertion protocol checks
  • Supports wide variety of error injection scenarios
  • Parameterized data and address widths
  • Support transaction logging with detailed description of each transfer
  • Support UVM_ RAL Model
  • Configurable Memory.
  • Provides detailed performance monitoring for all the transfers.
  • Support GUI analyzer for easy debugging

Block Diagram

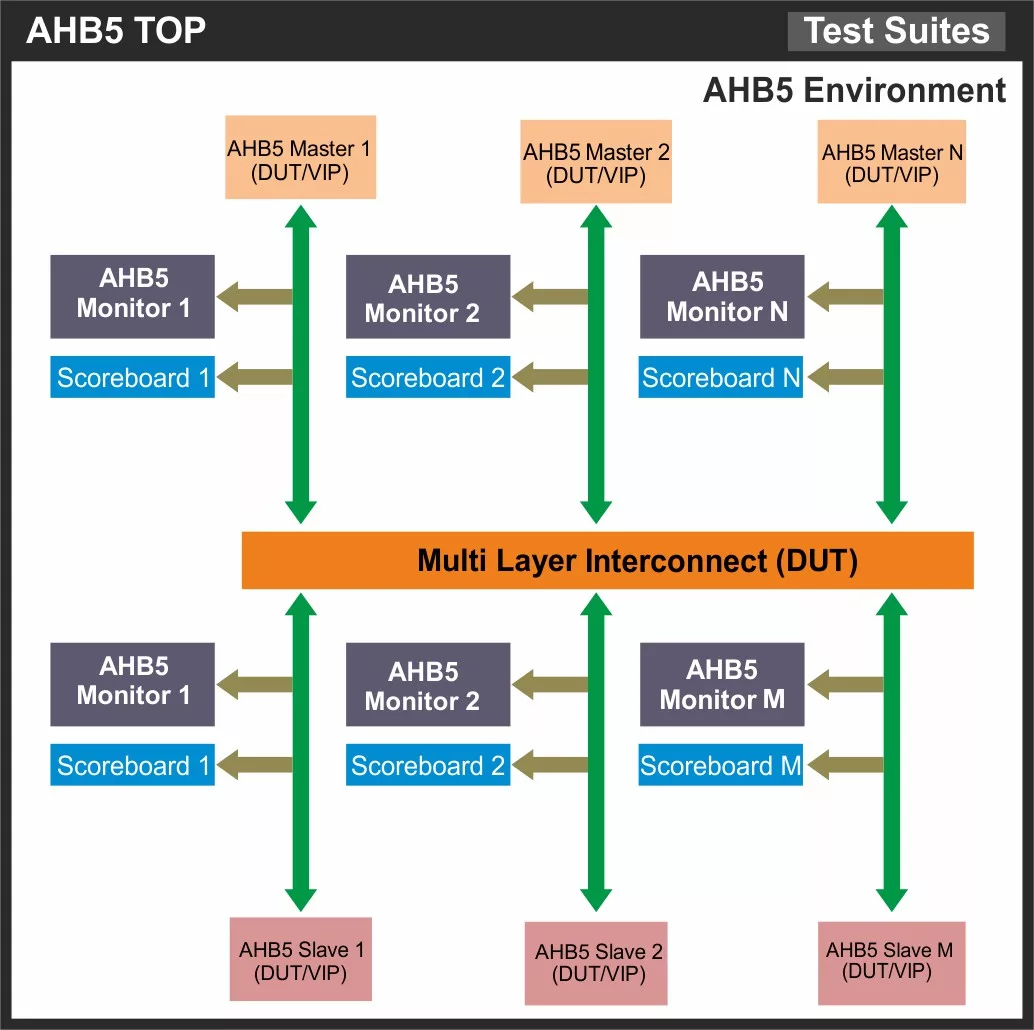

AMBA AHB 5 Verification IP block diagram

Benefits

  • Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure highest levels of quality
  • Availability of various Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and cover points with connectivity example for all the components
  • Consistency of interface, installation, operation and documentation across all our VIPs
  • Provide complete solution and easy integration in IP and SoC environment

What’s Included?

  • AMBA 5AHBMaster/Slave Agent
  • AMBA 5AHB Bus Monitor and Scoreboard
  • Test Environment & Test Suite :
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
  • Integration Guide, User Manual and Release Notes
