Vendor: Truechip Solutions Category: Coherency

AMBA 5 CHI Verification IP

The AMBA5 CHI Verification IP provides an effective & efficient way to verify the components interfacing with AMBA 5 CHI bus of a…

Contact Provider Request Datasheet

Overview

The AMBA5 CHI Verification IP provides an effective & efficient way to verify the components interfacing with AMBA 5 CHI bus of an IP or SoC. The AMBA5 CHI VIP is fully compliant with standard AMBA5 CHI specifications from ARM. This VIP is a lightweight VIP with an easy plug-and-play interface so that there is no hit on the design cycle time.

Key features

  • VIP is Compliant with the latest ARM™ AMBA5 CHI.
  • Support any type of network topology like Crossbar, Ring, Mesh, etc…
  • Support for all types of AMBA5 CHI Nodes:
    • Requester (RN-F, RN-D, RN-I)
    • Home (HN-F, HN-I)
    • Subordinate (SN-F, SN-I)
  • Support DMT, DWT, and DCT.
  • Support all types of transaction identifiers
  • GUI for easy analyzing packet debugging and decoding
  • All types of protocol, and link layer attributes are visible in packet & flit format.
  • Strong protocol checking Bus Monitor which also provides statistics ofthe transactions
  • Parameterized Flit data
  • All types of ordering modes, Request Retry are supported
  • Each cache line states , Request type, Response type, Snoop request & snoop response are supported
  • Exclusive, Cache stashing
  • DVM operation with address translation supported
  • Support REM features
  • Support Memory tagging, MPAM, PBHA.
  • Support Persistent and deep Persistent
  • Support Link activation & deactivation, protocol layer activation & deactivation.
  • Support Requester coherency request & acknowledge.
  • Support data poison & check_type
  • Support Critical chunk first wrap order

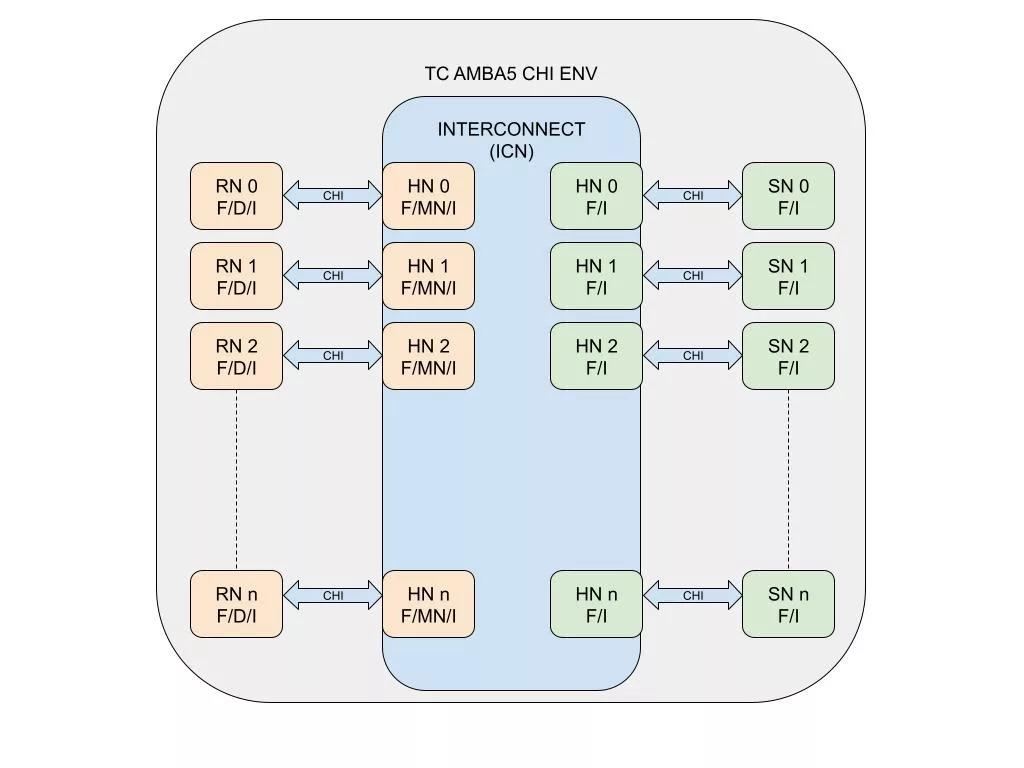

Block Diagram

AMBA 5 CHI Verification IP block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • AMBA5 CHI Requester/Home/Subordinate Node Agent
  • AMBA5 CHI Bus Monitor and Scoreboard
  • AMBA5 CHI NOC Scoreboard
  • Test Environment & Test Suite :
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
  • Integration Guide, User Manual, and Release Notes

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
AMBA 5 CHI Verification IP
Vendor
Truechip Solutions

Provider

Truechip Solutions
HQ: USA
