Vendor: ChipCraft Category: CPU

32-bit High Performance RV32GC Single/Multicore RISC Processor

The CCRV32ST-C processor is a synthesisable Verilog model of a high performance 32-bit RV32GC processor.

Overview

The CCRV32ST-C processor is a synthesisable Verilog model of a high performance 32-bit RV32GC processor. The model is highly configurable, and particularly suitable for system-on-a-chip (SoC) designs. The core is interfaced using the AMBA AXI4, AHB-Lite and APB buses. The processor can be efficiently implemented on FPGA and ASIC technologies and uses standard synchronous memory cells for caches and register file.

Key features

  • High Performance 32-bit RV32GC CPU
  • Proprietary 6-stage pipeline
  • Single or multicore implementation
  • Up to 1.38 DMIPS/MHz/Core
  • Up to 2.10 CoreMark/MHz/Core
  • Optional set-associative caches with data snooping
  • Power-down mode
  • On-chip debug support
  • FPGA and ASIC
  • JTAG or Uart Debug

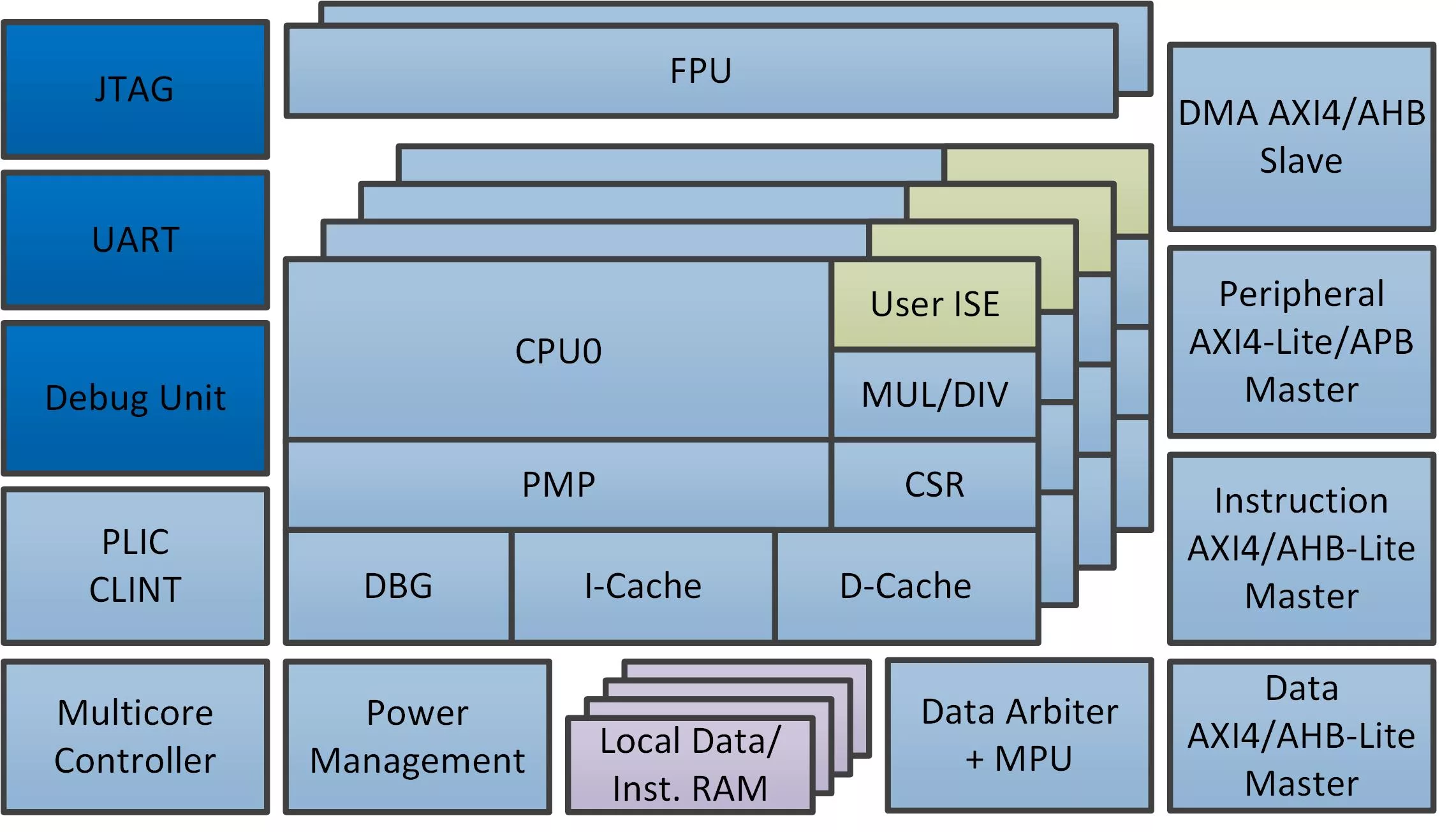

Block Diagram

Benefits

  • Synthesizable RTL Verilog source code
  • Cycle accurate simulator
  • Custom instruction set extension
  • Mature free GNU-Based C/GDB toolchain
  • Full implementation and maintenance support with individual approach
  • Low-cost and flexible licensing
  • Embedded solution for low-power and low-footprint applications
  • Suitable for mobile, IoT and wearable devices

Video

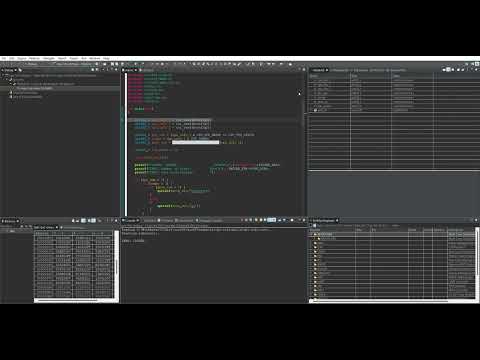

ChipCraft Integrated Development Environment (IDE)

Files

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
CCRV32ST-C
Vendor
ChipCraft

Provider

ChipCraft
HQ: Poland
ChipCraft is a private fabless semiconductor manufacturer that specializes in GNSS technology. The company provides fully integrated, multi-frequency, multi-constellation GNSS receivers of high precision and reliability. The NaviSoC receiver is offered as a chip and as a module, and is dedicated to consumer, industrial and automotive markets. ChipCraft also offers custom silicon design and development services for ASIC and FPGA, as well as silicon-proven IP blocks and IP cores, for multimarket sectors. The company is headquartered in Warsaw, Poland and supports customers worldwide. ChipCraft offers custom silicon design services for ASIC and FPGA. Our highly experienced, multi-disciplinary development team consists of system and processor architects, system micro-architects, VLSI designers, verification engineers and embedded software designers, as well as experts in communication systems, satellite navigation and signal processing. ChipCraft provides turnkey solutions based on full-flow IC design services. Our team can also deliver custom IP blocks or sub-systems, as well as augment any design team with required expertise. The Warsaw-based company has been providing effective design services and silicon-proven IP since its founding in 2016. ChipCraft’s flagship product the NaviSoC is a GNSS receiver integrated with an application processor on a single silicon die. The NaviSoC system on a chip delivers high precision, high reliability and security with low power consumption in a small size. The flexible solution offers customization to user requirements. The product serves variety of applications, including LBS, IoT, Lane-level Navigation, UAV and Autonomous Drones, Asset tracking, Time Synchronization, Smart Agriculture, Surveying and Mapping.
