Vendor: Digital Core Design Category: CPU

16/32-bit Microprocessor

The D68000-CPU32+ soft core is binary-compatible with the industry standard 68000’s CPU32+ version of the 32-bit microcontroller.

Overview

The D68000-CPU32+ soft core is binary-compatible with the industry standard 68000’s CPU32+ version of the 32-bit microcontroller. The D68000-CPU32+ has a 32-bit data bus and a 32-bit address data bus. It is code compatible with the 68000’s CPU32+ (version of MC68020). The D68000-CPU32+ has an improved instruction set, which allows program execution with higher performance than the standard 68000 core. It contains a built-in DoCD-BDM debugger interface. The D68000-CPU32+ is delivered with a fully automated test bench and a complete set of tests, allowing easy package validation at each stage of the SoC design flow.

Key features

  • Software compatible with industry standard 68000’s CPU32+ (68020 version)
  • DoCD-BDM on-chip debugger as in CPU32+
  • VBR register
  • 32-bit data and address registers
  • 16 addressing modes:
    • Direct:
      • Data register direct – Dn
      • Address register direct – An
    • Indirect:
      • Register indirect – (An)
      • Post-increment register indirect – (An+)
      • Pre-decrement register indirect – (-An)
      • Register indirect with offset – (d16,An)
      • Indexed register indir. with offset – (d8,An,Xn)
      • Indexed register indir. with offset and base displacement – (bd,An,Xn)
    • PC relative:
      • with offset(d16,PC); with index and offset – (d8,PC,Xn)
      • with index offset and base displacement – (bd,PC,Xn)
    • Absolute data:
      • Absolute short (.W)
      • Absolute long (.L)
    • Immediate data:
      • Immediate – #data
      • Quick immediate – #n
    • Implied
  • 5 data types supported:
    • bits, BCD
    • bytes, words and long words
  • Arithmetic Logic Unit includes:
    • 8,16,32-bit arithmetic & logical operations
    • 16×16, 32×32 bit signed and unsigned multiplication
    • 32/16, 32/32, 64/32 bit signed and unsigned division
    • Boolean operations
  • Interrupt controller:
    • 7 priority levels interrupt controller
    • Unlimited number of virtual interrupt sources
    • Vectored and auto-vectored modes
    • Format $0, $2, $C exceptions support as in CPU32+
  • Memory interface includes:
    • Up to 4 GB of address space
    • 32-bit data bus
    • Asynchronous bus control
  • M6800 family synchronous interface
  • 3- and 2- wire bus arbitration
  • Supervisor and user modes
  • Fully synthesizable, static synchronous design with no internal tri-states

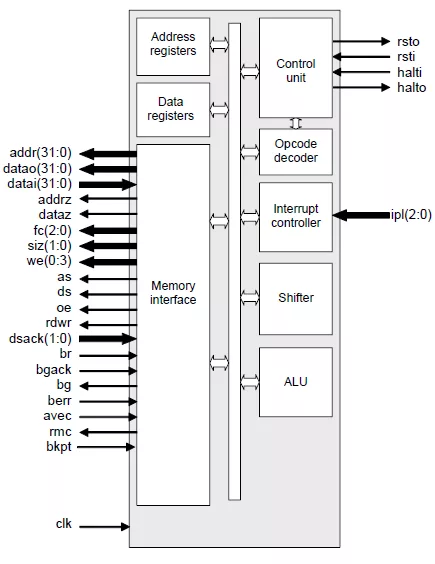

Block Diagram

Benefits

  • Rapid prototyping and time-to-market reduction
  • Design risk elimination
  • Development costs reduction
  • Full customization
  • Global sales network
  • Technology independence
  • Professional service
  • Getting a sillicon proven IP

What’s Included?

  • HDL Source Code
  • Testbench environment
    • Automatic Simulation macros
    • Tests with reference responses
  • Synthesis scripts
  • Technical documentation
  • 12 months of technical support

Files

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
D68000-CPU32+
Vendor
Digital Core Design

Provider

Digital Core Design
HQ: Poland
Founded in 1999, Digital Core Design is a global leader in IP core development, specializing in microprocessor, microcontroller, and communication solutions. With a portfolio of over 100 IP cores, DCD continues to drive innovation in embedded systems, providing cutting-edge solutions for automotive, industrial, IoT, and security applications.

Learn more about CPU IP core
