VME Slave Controller Core

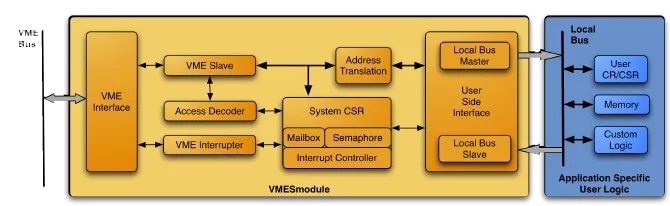

The VMESmodule is a complete VME Slave Controller core bridging the VME bus and the local bus. The core contains a VME Slave, a VME interrupter, mailbox and semaphore registers, a local interrupt controller, provisioning for CR/CSR, and a generic local bus interface.

The VMESmodule is a building block for your custom VME slave design. The synchronous local bus interface eases system integration while the VME slave bridge already contains all necessary functions and features of a VME slave controller.

With this reach feature set, the VMESmodule is an excellent platform to base all your future Slave VME designs on.

• Slave Interface
  • Addressing modes: A16, A24, A32
  • Data types: D08(EO), D16, D32, D32-BLT, D64-MBLT
  • Access modes: Read, write, read-modify-write
  • Selectable rescinding DTACK
  • Provides big-endian to little-endian conversion option
  • 8 slave windows with address translation
• Interrupter
  • D08(O)
  • Software interrupt request (ROAK)
  • User interrupt request (RORA)
  • Programmable interrupt level
• Local Bus Interface
  • Fully synchronous bus interface for user logic
  • User selectable wait-states
  • Optional big-endian to little-endian conversion
• CR/CSR
  • Contains address decoding for CR/CSR space
  • Local CSR configuration registers System Support
  • 4 mailbox registers
  • 4 semaphores
  • Local interrupt controller

• RTL code
• Self-verifying system-level testbench
• Simulation and synthesis scripts
• Synthesis information
• Timing constraints
• User guide
