Vendor: M31 Technology Corp. Category: UniPro

UniPro 2.0 device

The Unified Protocol (UniPro) provides a layered protocol similar to the ISO OSI model.

Overview

The Unified Protocol (UniPro) provides a layered protocol similar to the ISO OSI model. It is designed for high-speed, stable data transfer in mobile and automotive systems.

The UniPro 2.0 IP is compliant with MIPI UniPro 2.0 specification and is used for connecting applications and MIPI M-PHY links at HS-G5 speed (23.34 Gbps/Rate B).

The UniPro IP is fully compatible with M31’s M-PHY IP for use in UFS storage devices. When combined with UFS Host Controller IP, UniPro IP, and M-PHY IP, these IPs provide a comprehensive solution, enabling customers to easily integrate them into their applications and accelerate the time-to-market for SoC designs.

Key features

  • Compliant with MIPI Alliance UniPro Standard version 2.0 specification
  • HS-G5 transmission in M-PHY
  • High-Speed Link Startup
  • Skip symbol insertion and the scrambler function
  • Data Link Layer (L2) credit unit mode for 32 and 128
  • 272/1144 Byte segment splitting for Transport Layer (L4)
  • L4 test feature
  • DME QoS monitoring feature
  • 64-bit RMMI interface for M-PHY connections
  • 128-bit CPort interface for applications

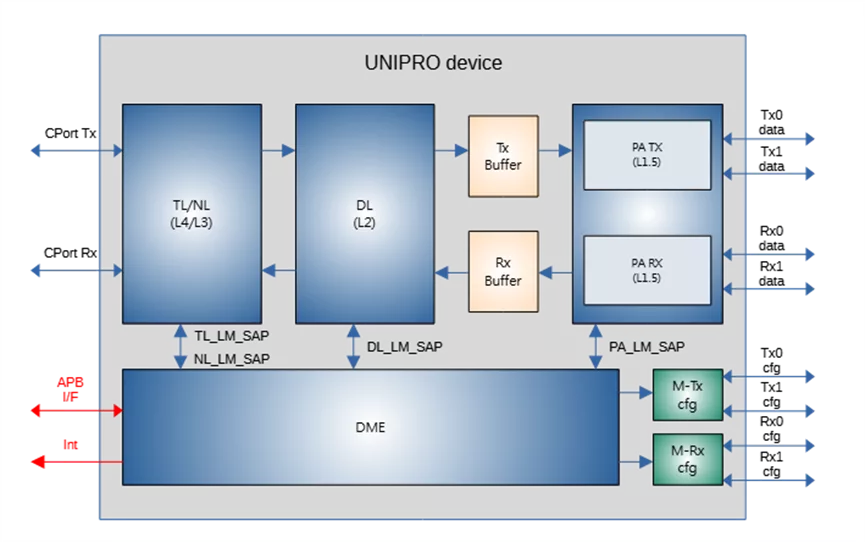

Block Diagram

UniPro 2.0 device block diagram

Specifications

Identity

Part Number
UniPro 2.0 device
Vendor
M31 Technology Corp.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
