Ultra Low-Power High-Performance AFE in 12nm

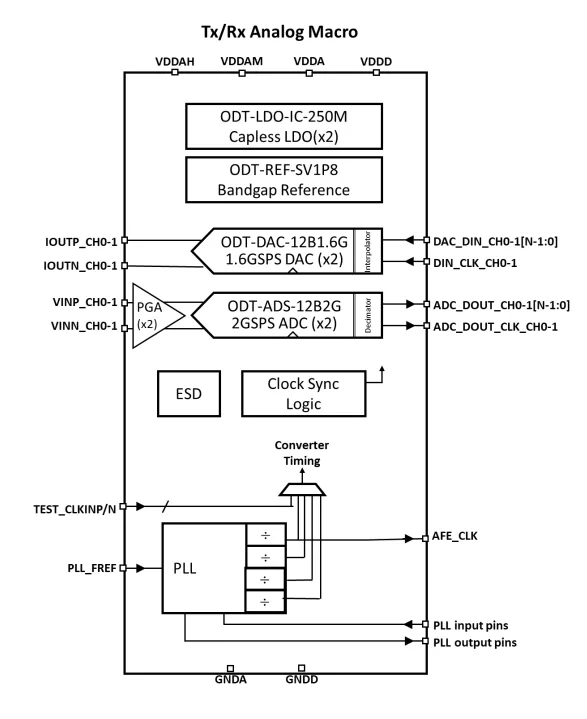

The ODT-AFE-1T1R-12 is an ultra-high-performance AFE designed in a 12nm process. The AFE includes 1 IQ Pairs of Tx and Rx for either the FR1 or FR2 band. This is comprised of two 12-bit 2GSPS ADCs, and two 12-bit 2GSPS DACs. This AFE also includes multiple capless LDOs, a voltage/current reference, and a low jitter 2 GHz PLL.

The ADC and DAC architecture is optimized to maximize performance while minimizing power and area consumption.

To maximize SNR, the AFE includes an ultra-low-jitter clock distribution network.

• Ultra high-performance AFE
• 2 - 12-bit 2GSPS ADCs
• 2 - 12-bit 1.6GSPS DACs
• 2 - Capless LDO
• Voltage/current reference
• Low jitter (3rd Party) PLL
• PLL bypass mode
• ADC Clock distribution network
• ADC Clock divider synchronization logic
• Integrated ESD and bumps

• General purpose software defined radio
• High speed data acquisition systems
• Cellular base station
• Broadband communications
• High-speed medical imaging
• Wideband satellite receiver

• Datasheet
• Hard Macro (GDSII)
• Characterization Report (as applicable)
• Abstract View (LEF) for top level connectivity
• Spectre Netlist (as needed upon request)
• Behavioral Model
• Integration and Customer Support
