SPI - Verifies reliable data transfer and protocol compliance in SPI systems

SPI (Serial Peripheral Interface) is a high-speed, synchronous communication protocol that ensures reliable data transfer between microcontrollers and peripherals. It verifies correct data transmission, signal timing, and error handling in SoC designs.

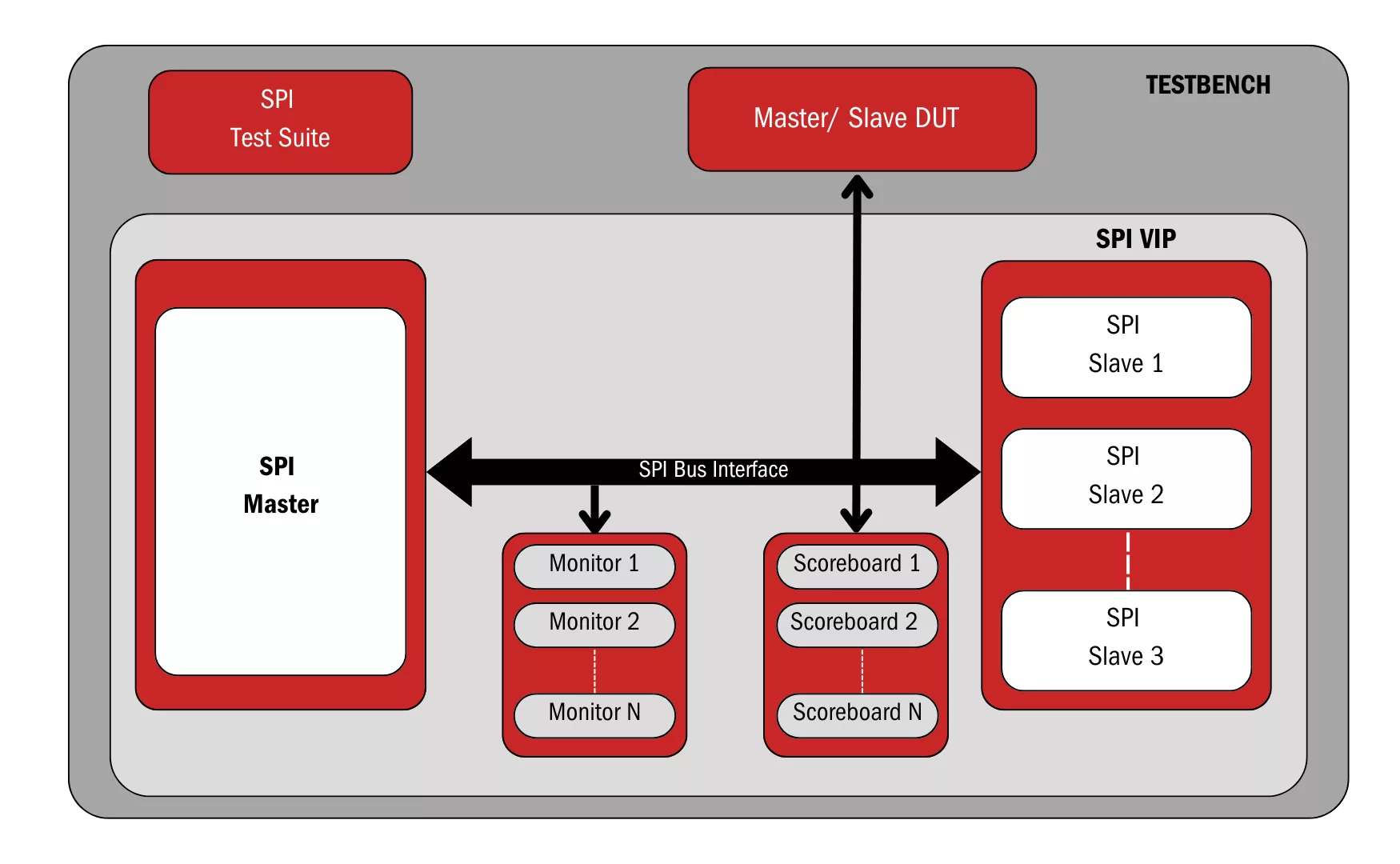

This versatile Verification IP (VIP) supports various SPI modes and clock configurations, enabling robust testing of master-slave communication, data integrity, and error conditions across multiple applications in embedded systems, automotive, IoT, and more

• Comprehensive Protocol Support: Validates all SPI modes, ensuring full-duplex communication between devices. It guarantees that the protocol operates as specified, checking for accurate signal timing and data integrity.
• Multiple Clocking Modes: Supports various clock polarity (CPOL) and phase (CPHA) configurations, enabling compatibility with diverse SPI systems. This flexibility ensures reliable communication in systems with different clocking requirements.
• Error Handling and Simulation: Simulates error conditions like data corruption and clock mismatches, allowing for the detection and handling of protocol violations. It ensures robustness by testing error detection and recovery mechanisms.
• Flexible Configuration: Customizable to accommodate different system configurations such as varying word lengths and clock frequencies. This feature is essential for testing a wide range of SPI implementations in different environments.
• Transaction Generation: Automatically generates both valid and invalid SPI transactions to test the system under various conditions. This helps ensure the device handles corner cases and error scenarios correctly.
