SPI Slave IP transfers to/from a AMBA APB, AXI, or AHB Interconnect

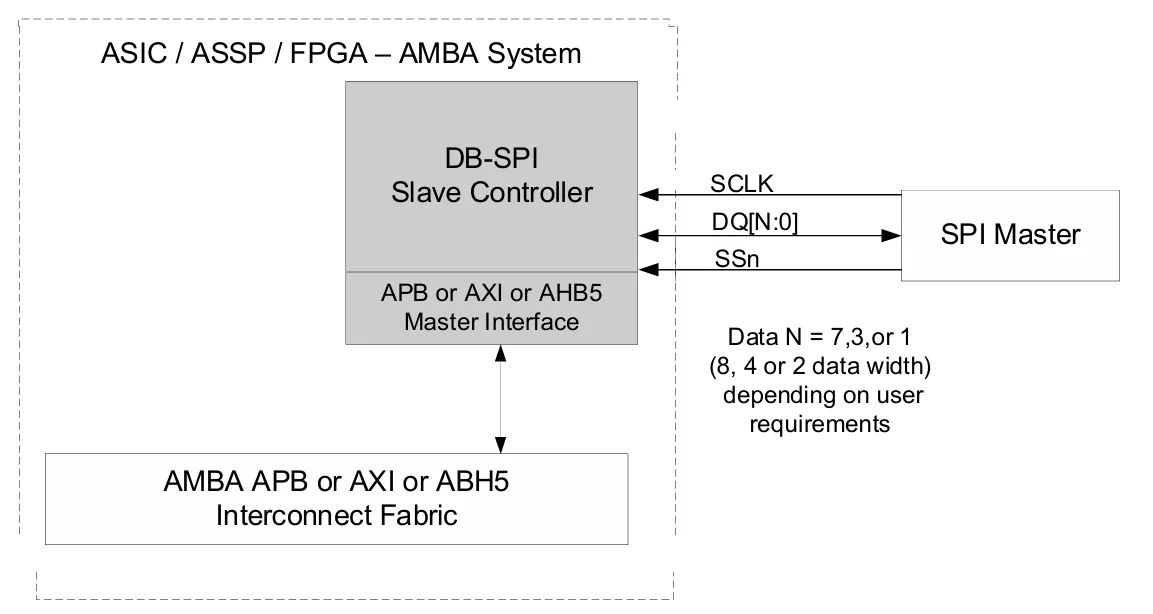

The DB-SPI-S-AMBA-BRIDGE is a Serial Peripheral Interface (SPI) Controller Verilog IP Core supporting only Slave SPI Bus transfers (both Full Duplex and Half Duplex) to/from a AMBA APB, AXI, or AHB Interconnect.

The DB-SPI-S-AMBA-BRIDGE contains dual clock Transmit/Receive FIFOs and Finite State Machine control to process incoming SPI transmit/receive transactions, and a AMBA Master Interface (i.e. APB, AXI, AHB5) to read or write the SPI payload data with respect to the AMBA Interconnect. No processor is required for configuration or control; the DB-SPI-S-AMBA-BRIDGE operates autonomously from reset.

The DB-SPI-S-AMBA-BRIDGE allows for SPI2APB, SPI2AXI, and SPI2AHB transfers, between the SPI bus and registers or memory attached to the AMBA Interconnect.

• Three release configurations:
  • SPI Slave to/from APB Master (SPI2APB)
  • SPI Slave to/from AXI Master SPI (AXI)
  • SPI Slave to/from AHB5 Master (SPI2AHB5)
• Signal Interface:
  • DQ-IO[3:0] - Data Input/Output
  • SCK - Serial Clock
  • SSn - Slave Select
• Configurable SPI Modes:
  • Standard SPI Mode (1 Data Lane)
  • Dual SPI Mode
  • Quad SPI Mode (2 Data lanes)(4 Data Lanes)
• Configurable LSB-first or MSB-first Per Word
• Two Clock Domains:
  • AMBA Bus / SCK Clocks
• Separate Transmit / Receive FIFOs:
  • Dual Clock Domains
  • 32-bit Data Width
  • Configurable depth
  • Implemented as Registers (recommended) or SRAM
• Available AMBA Master Interfaces:
  • AXI or APB or AHB
  • 32 bit Data Interface
• Compliance with ARM AXI / APB AMBA specifications:
  • Compliance with AMBA AXI Protocol Specification (V2.0)
  • Compliance with AMBA APB4 Protocol Specification (V2.0)
  • Compliance with ARM AMBA 5 AHB Protocol Specification
• Fully synchronous, synthesizable Verilog RTL core, no gated clocks, and no internal tri-states, for easy integration into FPGA or ASIC design flows.

• The DB-SPI-S-AMBA-BRIDGE is available in synthesizable RTL Verilog or a technology-specific netlist for FPGAs, along with Synopsys Design Constraints, a simulation test bench with expected results, datasheet, and user manual.
