SATA-IP core - File system management without CPU

SATA IP core compliant with the Serial ATA specification revision 3.0 and work on AMD UltraScale and 7-Series device.

Contact Provider Request Datasheet

Overview

SATA IP core compliant with the Serial ATA specification revision 3.0 and work on AMD UltraScale and 7-Series device.

This IP core provide link layer. Design Gateway provide transport layer and 150MHz GTX physical layer design for 6.0Gbps SATA-III interface as reference design. It can connect with SATA-III HDD directly without external PHY chip.

Key features

  • Compliant with the Serial ATA specification revision 3.0
  • Support both of SATA Host and SATA Device (Applicable to SATA Peripheral development)
  • Compact and small resource usage (less than 500 Slices), suitable for multi-channel RAID system
  • Adopted by NASA, proven high reliability
  • Simple transaction interface with Host processor or DMA Engine
  • 32-bit internal data path
  • 4KB FIFO implemented by BlockRAM in transmit and receive paths
  • Low frequency operation
  • - IP Core and PHY clock 150MHz for SATA-III
  • - IP Core clock 75.0MHz and PHY clock 150MHz for SATA-II
  • - IP Core clock 37.5MHz and PHY clock 75MHz for SATA-I
  • CONT primitive support for continue primitive suppression to reduce EMI
  • Support 40bit width PHY implemented by 7-Series GTX
  • Able to evaluate on AMD FPGA boards before purchasing the IP core
  • Support AHCI, Linux boot up from Zynq-7000 device.
  • Host Controller IP (HCTL IP) is available to be provided with SATA-IP core.
  • exFAT & FAT32 file system management without CPU usage (Option)

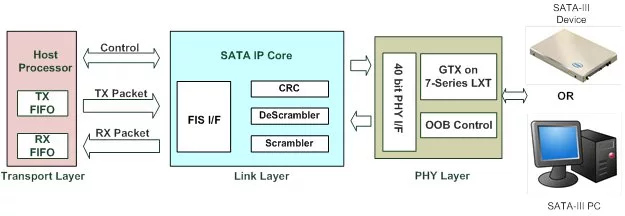

Block Diagram
