Vendor: Imagination Technologies Group Ltd. Category: GPU

PowerVR Series8XE Plus Graphics Processor

Series8XE Plus GPUs available in a range of configurations Available in two- and four-cluster configurations, Series8XE Plus is d…

Contact Provider Request Datasheet

Overview

Series8XE Plus GPUs available in a range of configurations

Available in two- and four-cluster configurations, Series8XE Plus is designed specifically to deliver the right mix of performance, features and silicon size for the most demanding markets.

Key features

  • API support
    • OpenGL® ES 1.1, 2.0, 3.0, 3.1, 3.2
    • Vulkan® 1.0, 1.1
    • OpenCL™ 1.1, 1.2
    • Android NN HAL
  • Hardware virtualization
    • Up to eight operating systems
  • Bus interface
    • AMBA®4 ACE or ACE-LITE
  • Memory system
    • Virtual Memory
  • Security
    • Beyond TrustZone®
  • Compression
    • PVRIC Frame buffer compression
      • Lossless image compression – PowerVR’s frame buffer compression and decompression (FBCDC) algorithm
    • Texture compression
      • ETC
      • ETC2
      • ASTC
      • PVRTC
    • Performance
      • Floating point operations per clock
        • 128 FP16 FLOPs/Clock
        • 256 FP16 FLOPs/Clock
      • Pixel rate per clock
        • 8 pixels per clock

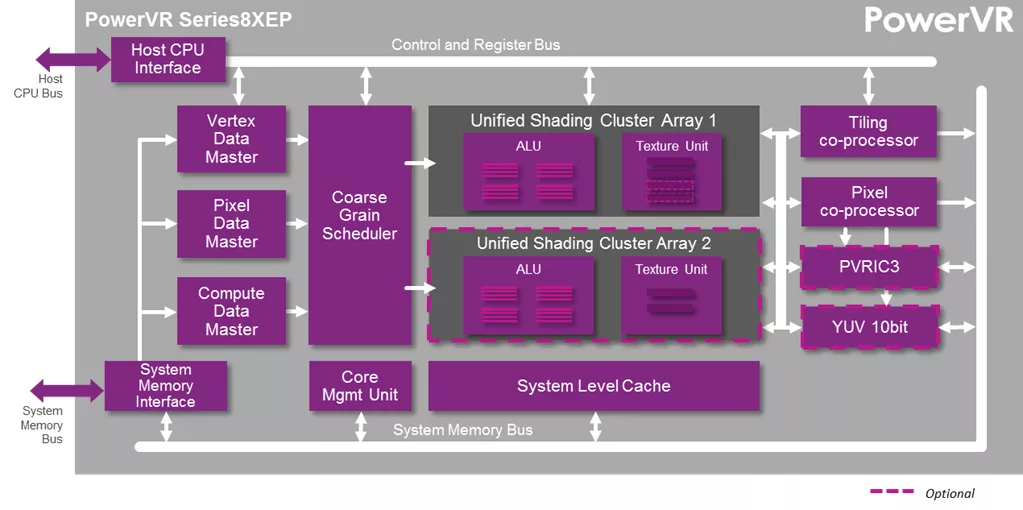

Block Diagram

PowerVR GE8430 block diagram

Benefits

  • Powervr GPU Series: PowerVR Series8XE Plus
  • Performance Options: High-End, High-End Gaming, Mid-Level To High-End, Mid-Range
  • Powervr Architectures: Rogue
  • Powervr Markets: Automotive, Hand Held Console, Industrial, Infotainment, Mobile, Set-Top Boxes, Tablets, UHDTVs

Specifications

Identity

Part Number
PowerVR GE8430
Vendor
Imagination Technologies Group Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Imagination Technologies Group Ltd.
