Power-On Reset - Flexible Threshold (1­-1.3V), Ultra Low Current (100nA) - Silterra 0.18 um

This macro-cell is an ultra low consumption Power-On Reset (POR) core designed for SilTerra 0.18μm CL180G CMOS technology.

Contact Provider Request Datasheet
Silterra 180nm G Silicon Proven View all specifications

Overview

This macro-cell is an ultra low consumption Power-On Reset (POR) core designed for SilTerra 0.18μm CL180G CMOS technology.

The threshold sensing voltage can be configured from 1V to 1.3V (default is 1.15V). A hysteresis of 120mV is added to avoid false reset glitches in noisy supplies. This value can be digitally configured from 70mV to 200mV. The POR features an internal process compensated voltage reference. It requires an external 7.75nA current bias (sink), which can be implemented using CM1014ff IP.

The core is easily retargeted to any other CMOS technology.

Key features

  • Supply voltage: 1.0–2.0V
  • Configurable assertion threshold (1.0V– 1.3V)
  • Adjustable hysteresis (70mV– 200mV)
  • Ultra low current consumption (100nA)
  • Indicative area: 0.0064mm2

Block Diagram

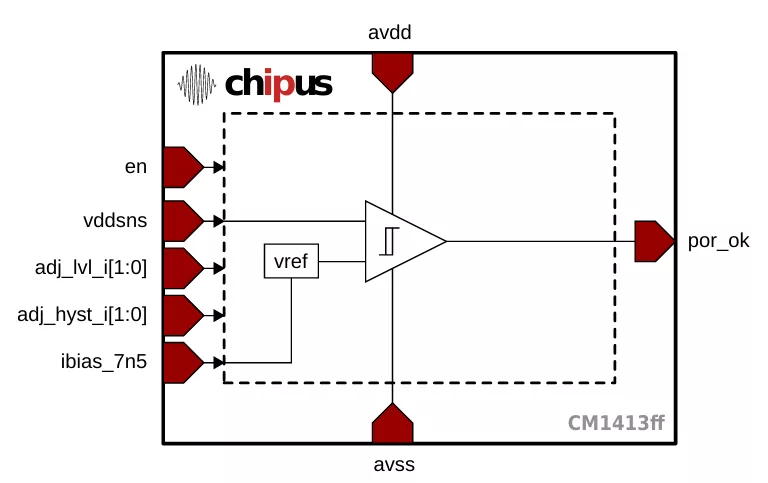

CM1413ff block diagram

Silicon Options

Foundry Node Process Maturity
Silterra 180nm G Silicon Proven

Specifications

Identity

Part Number
CM1413ff
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download
