Power-On Reset - Flexible Threshold (1­-1.3V), Ultra Low Current (100nA) - SilTerra 0.16µm CL160G

This macro-cell is an ultra low consumption Power-On Reset (POR) core designed for SilTerra 0.16μm CL160G CMOS technology.

Contact Provider Request Datasheet

Overview

This macro-cell is an ultra low consumption Power-On Reset (POR) core designed for SilTerra 0.16μm CL160G CMOS technology.

The threshold sensing voltage can be configured from 1V to 1.3V (default is 1.15V). A hysteresis of 120mV is added to avoid false reset glitches in noisy supplies. This value can be digitally configured from 70mV to 200mV. The POR features an internal process compensated voltage reference. It requires an external 7.75nA current bias (sink), which can be implemented using the CM1017ffm or CM1018ffm IPs.

The core is easily retargeted to any other CMOS technology.

Key features

  • Supply voltage: 1.0–2.0V
  • Configurable assertion threshold (1.0V– 1.3V)
  • Adjustable hysteresis (70mV– 200mV)
  • Ultra low current consumption (100nA)
  • Indicative area: 0.0064mm2

Block Diagram

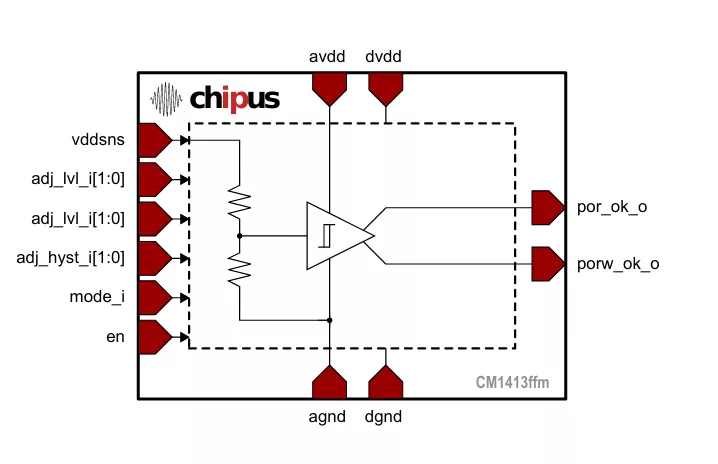

CM1413ffm block diagram

Applications

  •  Passive/active RFID tag ICs
  •  Battery powered equipment
  •  Hearing aids

What’s Included?

  •  Datasheet/Integration Guide
  •  HDLModel
  •  Flat GDSII database/LVS netlist
  •  Customer Support

Specifications

Identity

Part Number
CM1413ffm
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Chipus Microelectronics
