Vendor: Chipus Microelectronics Category: Power On Reset (POR)

Power-On Reset - Flexible Threshold (0.9–1.6V), Ultra Low Current (210nA) - Silterra 0.16 um

This macro-cell is an ultra low consumption Power-On Reset (POR) core designed for SilTerra 0.16μm C16G CMOS technology.

Overview

This macro-cell is an ultra low consumption Power-On Reset (POR) core designed for SilTerra 0.16μm C16G CMOS technology.

The on threshold sensing voltage can be configured from 960mV to 1.62V (default are 1.1V @ 1.2V and 1.23V @ 1.8V). The off threshold sensing voltage can be configured from 880mV to 1.34V. A hysteresis of 39mV to 275mV is added to avoid false reset glitches in noisy supplies.

The core is easily retargeted to any other CMOS technology.

Key features

  • Supply voltage: 1.0–2.0V
  • Configurable assertion threshold: (920mV– 1.62V)
  • Hysteresis: (39mV– 275mV)
  • Lowcurrent consumption: (210nA @ 1.2V; 750nA @ 1.8V )
  • Indicative area: 0.0057mm2

Block Diagram

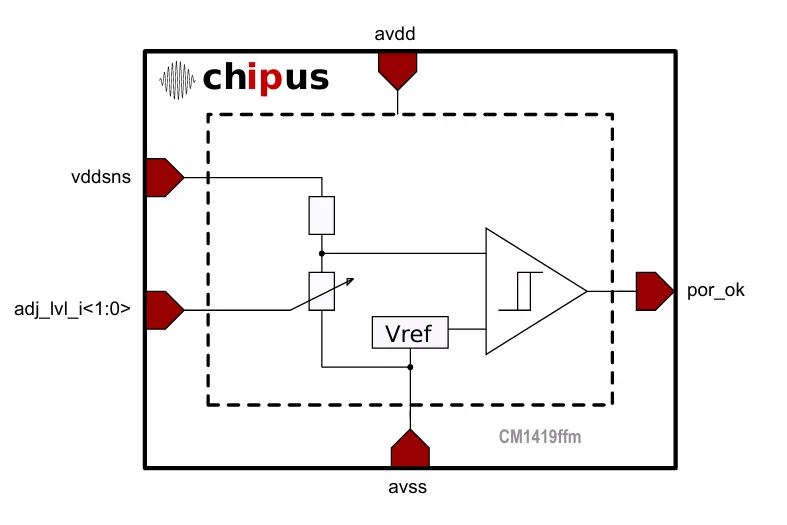

CM1419ffm block diagram

Applications

  • Passive/active RFID tag ICs
  • Battery powered equipment
  • Hearing aids

Specifications

Identity

Part Number
CM1419ffm
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider
