Vendor: Noesis Technologies Category: Symmetric Crypto

NIST FIPS-197 Compliant Ultra-Low Power AES IP Core

ntAES8 core implements NIST FIPS-197 Encryption Standard.

Contact Provider Request Datasheet
AES View all specifications

Overview

ntAES8 core implements NIST FIPS-197 Advanced Encryption Standard. ntAES8 core can be programmed to encrypt or decrypt 128-bit blocks of data using a 128-bit, 192-bit or 256-bit key. The ntAES8 has been carefully designed to require minimum logic resources rendering it an ideal solution for ultra-low power applications. This has been achieved by using an 8-bit data path size which means that 16 clock cycles are required to load/unload the 128-bit plaintext/ciphertext block. Noesis is proud to offer an optimum AES IP core solution exhibiting the best performance-silicon area ratio available in the industry due to our unique architectural implementation of the Galois Field Multiplier (the structural datapath element of all AES cryptographic engines) as well as our efficient algorithm mapping techniques.

Key features

  • Compliant to Advanced Encryption Standard (AES) (FIPS PUB 197).
  • Supports both encryption and decryption functions.
  • Supports 128/192/256-bit Cipher keys.
  • Processes an 128-bit block in 480/582/684 clock cycles for 128/192/256-bits cipher keys respectively.
  • Supports ECB, CBC, CFB, OFB and CTR modes.
  • Optional Key Expansion module.
  • Supports I/O data flow control capability.
  • Exhibits highly optimized performance-silicon area ratio.
  • Ideal for ultra-low power applications.
  • Fully synchronous design.
  • Silicon proven in ASIC and FPGA technologies for a variety of applications.

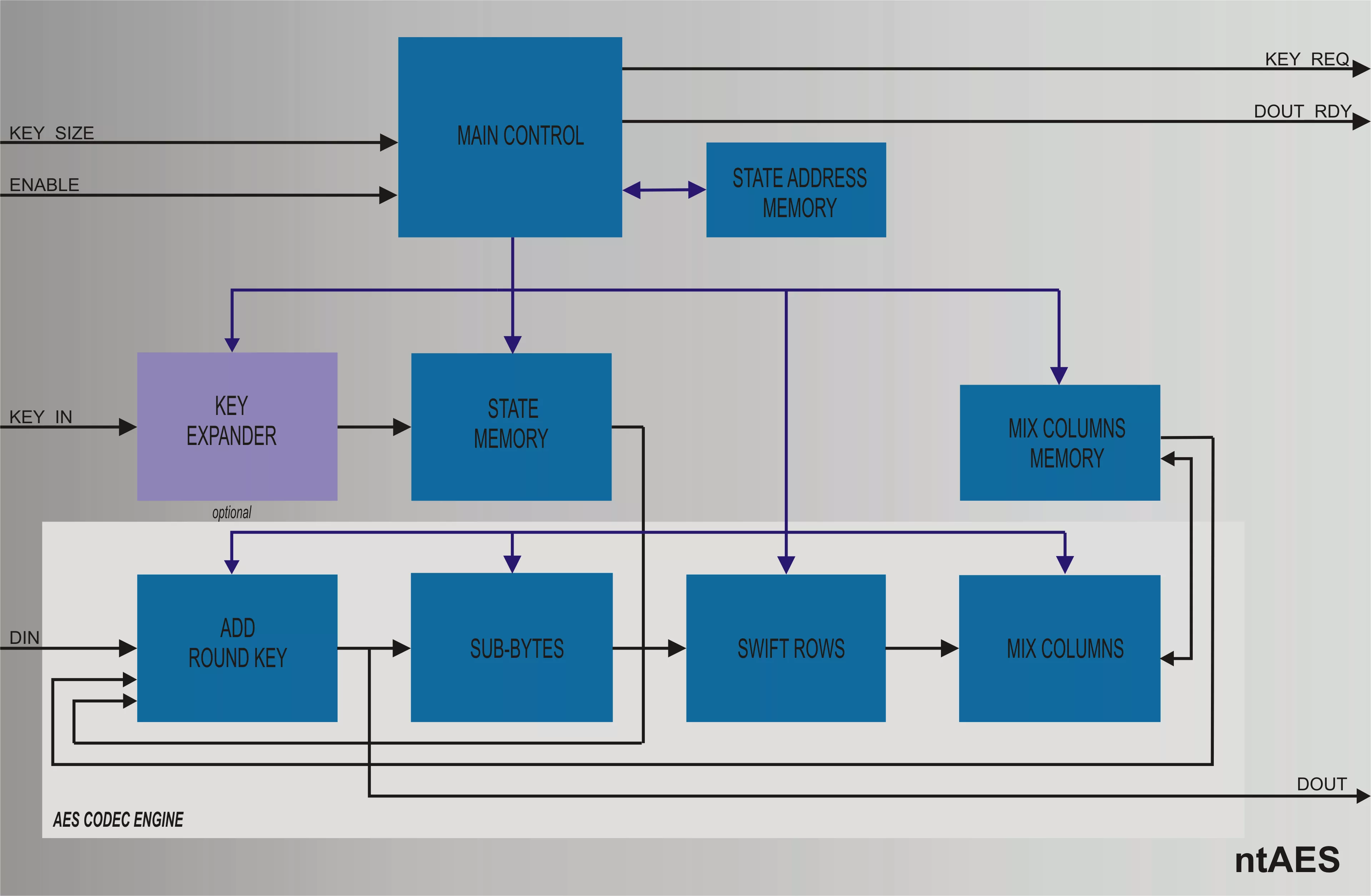

Block Diagram

ntAES8 block diagram

Benefits

  • ntAES8 IP core exhibits the best performance-silicon area ratio available in the industry.
  • It is an ideal solution for ultra-low power applications.

What’s Included?

  • RMM compliant synthesizable VHDL or Verilog source code or FPGA netlist.
  • VHDL or Verilog test benches and example configuration files.
  • C++ model.
  • Comprehensive technical documentation.
  • Technical support.

Specifications

Identity

Part Number
ntAES8
Vendor
Noesis Technologies
Type
Silicon IP

Security

Crypto Algorithm
AES

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Noesis Technologies
HQ: Greece
Contact Noesis Technologies
