Vendor: Rambus, Inc. Category: Symmetric Crypto

Multi-Protocol Engine, Look-Aside, 1 Gbps

The Protocol-IP-93 Multi-Protocol Engine is a protocol-aware packet engine for accelerating IPSec, SSL/TLS, and SRTP up to 1 Gbps…

Contact Provider Request Datasheet

Overview

The Protocol-IP-93 Multi-Protocol Engine is a protocol-aware packet engine for accelerating IPSec, SSL/TLS, and SRTP up to 1 Gbps in SoCs. Designed for fast integration, low gate count and full packet transforms, it provides a reliable and cost-effective embedded IP solution that is easy to integrate into SoC designs. It is ideal for securing cloud connection with TLS and acceleration of other application that require cryptographic operations, such as secure boot.

  • How the Protocol-IP-93 Multi-Protocol Engine works

The Multi-Protocol Engine is a protocol-aware packet engine IP with a Look-Aside bus interface and a packet transform engine. The Multi-Protocol engine is used as a bus master in the data plane of the system and processes packets with very little CPU intervention. This engine supports an AMBA (AXI, AHB, TCM) or a PLB SoC bus interface and can be delivered in different configurations to support IPsec as well as SSL and TLS up to the latest 1.3 release. It is the world’s only 100K gate IPsec/TLS accelerator (excluding interface).

The Multi-Protocol Engine is designed to off-load the host processor to improve the speed of protocol operations and reduce power in cost-sensitive networking products, such as: high-end IoT devices; IoT gateways; femtocells; DSL routers; SOHO routers; cable modems; VPN appliances; and surveillance cameras.

Performance for large packet sizes is > 1 Gbps for any supported protocol. IPsec performance for small packet sizes is > 500 Mbps, at a system clock speed of 500 MHz.

Key features

  • Key benefits:
    • Silicon-proven implementation
    • Fast and easy to integrate into SoCs
    • Flexible layered design
    • Complete range of configurations
    • World-class technical support
    • Driver Development Kit
    • Descriptor ring infrastructure, with master DMA controller
    • SA manager
  • IPsec (IPv4 and IPv6):
    • Full IPsec packet ESP transforms, for tunnel & transport mode, according to RFCs (2403, 2404, 2405, 2410, 3566, 3602, 3686, 4301, 4303, 4308, 4309, 4835 and 4868)
    • Complete IPsec (IPv4 and IPv6) header processing:
    • Insert ESP header for outbound packets
    • Strip and verify ESP header for inbound packets
    • Anti-replay check
    • IPsec trailer processing:
    • Insert padding up to 255 bytes for outbound packets
    • Strip and verify padding up to 255 bytes for inbound packets
    • Calculate and insert integrity check value for outbound packets, strip and verify for inbound packets
  • SSL3.0 / TLS1.0 / TSL1.1 / TLS1.2 / TLS1.3 / DTLS:
    • Full single pass packet transforms according to RFCs (2246, 3268, 3546, 4346, 4347, 4366, 5246 and 8446).
    • Full Header processing:
    • Insert header for outbound packets,
    • Strip and verify header for inbound packets,
    • Anti-replay check.
    • Trailer processing:
      • Insert padding up to 255 bytes for outbound packets
      • Strip and verify padding up to 255 bytes for inbound packets
      • Calculate and insert Message Authentication Code for outbound packets, strip and verify for inbound packets
  • The cryptographic engine supports the following cryptographic algorithms:
    • (Triple-)DES in ECB and CBC with 56-bit key
    • AES in ECB, CBC, ICM, CTR mode with 128-bit 192-bit and 256-bit key
    • Special HDCP cipher mode combination with AES-CTR
    • Optional ARC4 in stateful, stateless mode, up to 128-bit key
    • Automatic padding up to 255 bytes
  • The hash engine supports the following algorithms:
    • SHA-1, SHA-2-224/256, MD5
    • HMAC transforms for SHA-1, SHA-2, MD5
    • SSL-MAC transforms for SHA-1, MD5
  • Combined AECD Cipher algorithms
    • AES-CCM, AES-(X)CBC-MAC, AES-CMAC
    • Optional: AES-GCM, AES-GMAC

Block Diagram

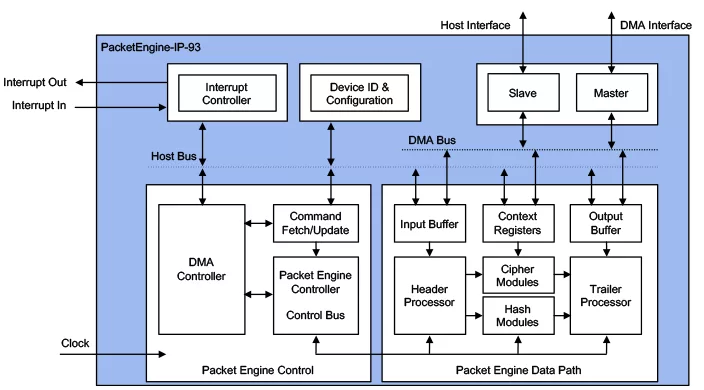

Protocol-IP-93 block diagram

Benefits

  • High-speed Crypto Packet solution
  • Silicon-proven implementation
  • Fast and easy to integrate into SoCs
  • Flexible layered design
  • Complete range of configurations
  • World-class technical support

Applications

  • SSL
  • TLS
  • DLTS
  • IPsec
  • Communication protocols

What’s Included?

  • Documentation
    • Hardware Reference and Programmer Manual
    • Integration Manual
    • Verification Specification
    • Operations Manual
  • Synthesizable Verilog RTL source code
  • Self-checking RTL test bench, including test vectors and expected result vectors
  • Simulation scripts
  • Configuration:
    • EIP-93i
      • Supports IPsec ESP and SRTP
      • 115K gates
    • EIP-93ie
      • adds SHA-224/256 + AES-192/256
      • 135K gates
    • EIP-93is
      • adds SSL/TLS/DTLS + MD5 + ARC4
      • 125K gates
    • EIP-93ies
      • adds SHA-224/256 + AES-192/256 + SSL/TLS/DTLS + MD5 + ARC4
      • 155K gates

Specifications

Identity

Part Number
Protocol-IP-93
Vendor
Rambus, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Rambus, Inc.
HQ: USA
Contact Rambus, Inc.
