Multi-channel Audio Digital Interface (MADI) IP Core

The Verien Design Group MADI IP core is proven technology.

Contact Provider Request Datasheet

Overview

The Verien Design Group MADI IP core is proven technology. Many of these cores have been shipped and to some of the biggest names in the audio industry - both in the US and in Japan.

The Multi-channel Audio Digital Interface (MADI) is an AES standard, specifically AES-10, and can accommodate the bidirectional transfer of up to 64 channels of audio data across either copper or fibre. The Verien MADI core consists of both the transmitter and receiver and can be dynamically configured for up to the maximum channel count supported by the standard. The receiver includes data recovery using an oversampling technique - no high speed transceivers (Hotlink or otherwise) are required and no external clock recovery is needed.

The user side consists of two simple FIFO interfaces - one for the transmitter and one for the receiver, along with programmable FIFO status signals. Example interface code and multiple example designs are provided, including three self-checking testbenches. Loopback generation and checking are built-into the core allowing the core to be tested without external hardware.

Key features

  • No high-speed transceivers required (Hotlink or other)
  • Built-in loopback mode with data generation and testing
  • Can be configured for number of channels
  • Generic FIFO interfaces are provded for the user side interface
  • Meets the AES-10 specification for multi-channel digital audio
  • Operates from a single 125 MHz clock
  • Provides data recovery without external PHY or other devices
  • Has been successfully used in both Xilinx and Altera (Intel) designs

Block Diagram

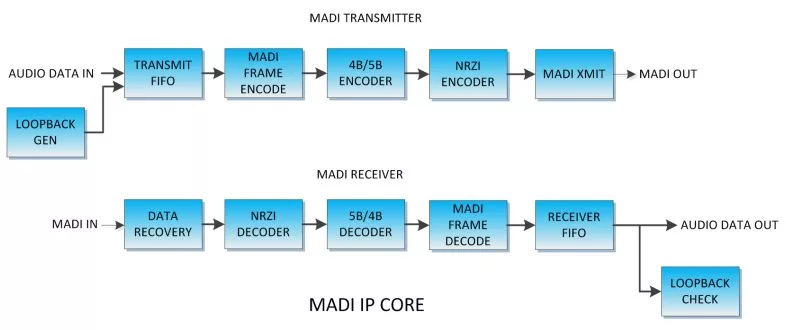

VIP-MADI block diagram

Benefits

  • One chip solution for MADI digital audio

Applications

  • Audio
  • Broadcast
  • Wired Communications

What’s Included?

  • HDL Source code
  • Multiple simulation testbenches

Specifications

Identity

Part Number
VIP-MADI
Vendor
Verien Design Group, LLC
Type
Silicon IP

Files

Product Sheet Download
