HDMI 2.1 Tx- Rx PHY & Controller IP (Silicon Proven in TSMC 28HPC+)

The HDMI V2.1 Tx provides a single-link HDMI transmitter function complies with HDMI specification version 2.1.

Contact Provider Request Datasheet
TSMC 28nm HPC+ In Production View all specifications

Overview

The HDMI V2.1 Tx provides a complete single-link HDMI transmitter function complies with HDMI specification version 2.1. It consists of two modules, a physical layer and a link module. The PHY is upper compatible with DVI transmitter and implemented as a hard IP based on an TSMC 28nm HPC+ process, while the link module is implemented as a synthesizable soft IP. Built-in High-bandwidth Digital Content Protection (HDCP) cipher function protects the transmission of audio-visual contents.

The HDMI V2.1 Rx provides a complete single-link HDMI receiver function complies with HDMI specification version 2.1. It consists of two modules, a physical layer (PHY) and a link module. The PHY is upper compatible with DVI receiver and implemented as a hard IP based on an TSMC 28nm HPC+ process, while the link module is implemented as a synthesizable soft IP. Built-in High-bandwidth Digital Content Protection (HDCP) cipher function protects the transmission of audio-visual content.

Key features

  • HDMI version 2.1 compliant transmitter and sink function
  • Supports Dynamic HDR, FRL, VRR and Fast V active
  • Wide range channel speed up to 12Gbps
  • HDCP revision 1.4/2.2 compliant content protection
  • Programmable PLL characteristics, transmitter swing voltage, and pre-emphasis
  • Programmable PLL characteristics, channel delay, and on-chip terminator.
  • 0.9V/1.8V power supply - Tx
  • 0.9V/1.8V/3.3V power supply – Rx
  • HDMI1.4b/HDMI2.0b/HDMI2.1 Compliant (Support FRL/EMpacket), 3Lane(3Gbps/6Gbps)/4Lane(6Gbps/8Gbps)
  • Band width: 250Mbps~12Gbps/ch

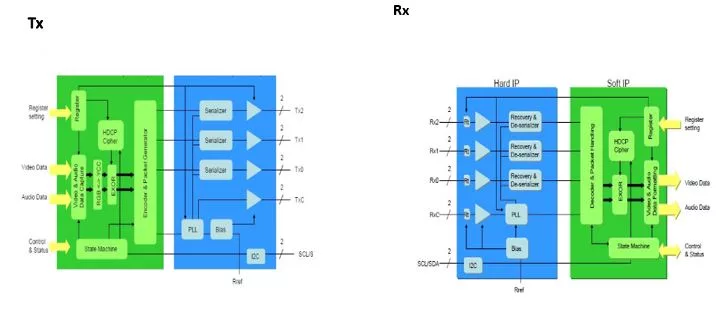

Block Diagram

HDMI v2.1 Tx-Rx Phy & Controller IP block diagram

Applications

  • Digital TV
  • Tablets
  • Mobile phones
  • Digital camera
  • Camcorders
  • Soundbars
  • Audio/Video Receivers
  • DVD players
  • Recorders
  • Streaming-media players
  • Set-top boxes
  • Home theater systems
  • Game consoles

What’s Included?

  • Configurable RTL Code
  • HDL based test bench and behavioral models
  • Test cases
  • Protocol checkers, bus watchers and performance monitors
  • Configurable synthesis shell
  • Documentation
  • Design Guide
  • Verification Guide
  • Synthesis Guide

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ In Production

Specifications

Identity

Part Number
HDMI v2.1 Tx-Rx Phy & Controller IP
Vendor
T2M GmbH
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

T2M GmbH
HQ: Germany
Contact T2M GmbH
